Description

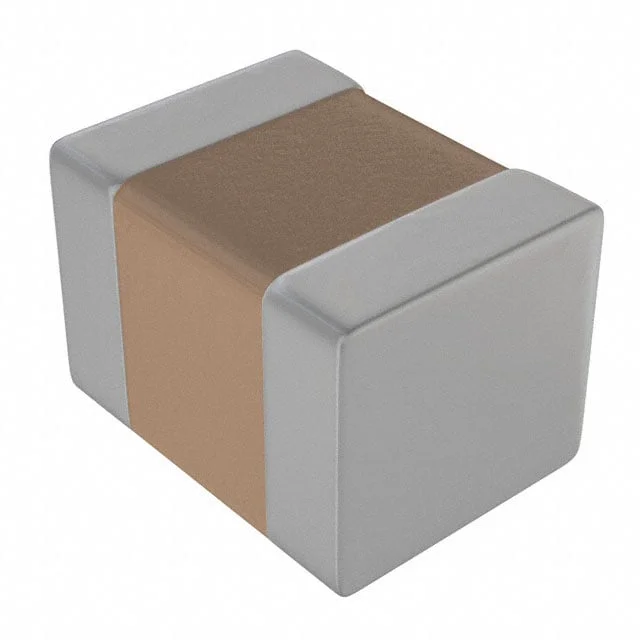

FIXED IND 2.2UH 2A 80 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for L1210R2R2MDWIT.
L1210R2R2MDWIT has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
L1210R2R2MDWIT is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
L1210R2R2MDWIT lists a DC resistance of 80mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
L1210R2R2MDWIT uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from L1210R2R2MDWIT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 80mOhm |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | KEMET |
| Description | FIXED IND 2.2UH 2A 80 MOHM SMD |
| Series | L-DWI |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 190MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.106" (2.70mm) |
