Description

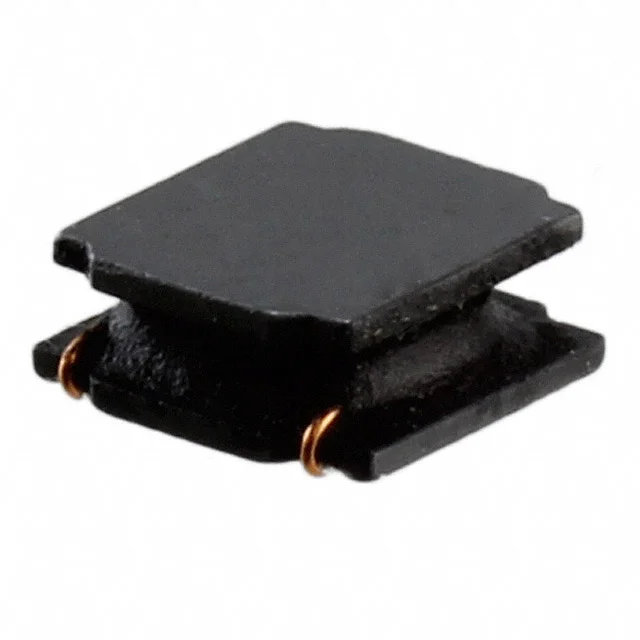

FIXED IND 2.2UH 1.44A 60 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for L4018C2R2MDWDT.
L4018C2R2MDWDT has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
L4018C2R2MDWDT is rated for 1.44 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
L4018C2R2MDWDT lists a DC resistance of 60mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
L4018C2R2MDWDT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from L4018C2R2MDWDT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.44 A |
| DC Resistance (DCR) | 60mOhm Max |
| Operating Temperature | -25°C ~ 120°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 2.2UH 1.44A 60 MOHM |
| Series | L-DWD |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 52MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.071" (1.80mm) |
