Description

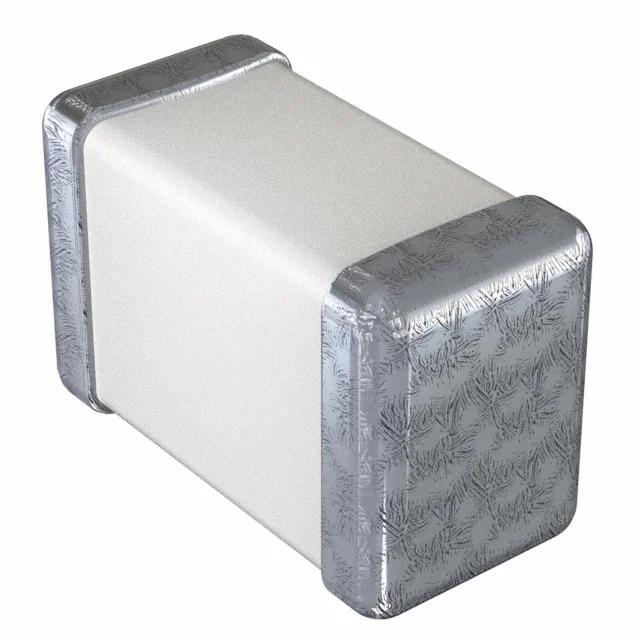

FIXED IND 1.3NH 400MA 100 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MCL1005-1R3-R.
MCL1005-1R3-R has an inductance value of 1.3 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MCL1005-1R3-R is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MCL1005-1R3-R lists a DC resistance of 100mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MCL1005-1R3-R uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MCL1005-1R3-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1.3 nH |
| Tolerance | ±0.3nH |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 100mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 1.3NH 400MA 100 MOHM |
| Series | MCL1005 |
| Product Status | Active |
| Type / Construction | Multilayer |
| Shielding | Unshielded |
| Q @ Frequency | 8 @ 100MHz |
| Self Resonant Frequency | 10GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.026" (0.65mm) |
