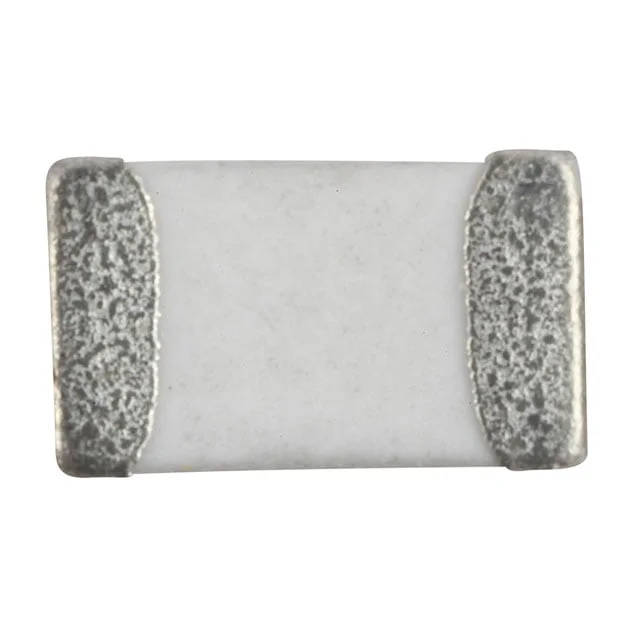

Description
FIXED IND 27NH 300MA 550 MOHM
Specifications
Inductance
27 nH
Current Rating
300 mA
DC Resistance (DCR)
550mOhm Max
Dimensions
0.079" L x 0.047" W (2.00mm x 1.20mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 27 nH |
| Tolerance | ±5% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 550mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 27NH 300MA 550 MOHM |
| Series | MCL2012V2 |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | 15 @ 100MHz |
| selfResonantFreq | 1.4GHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.043" (1.10mm) |
| features | - |
