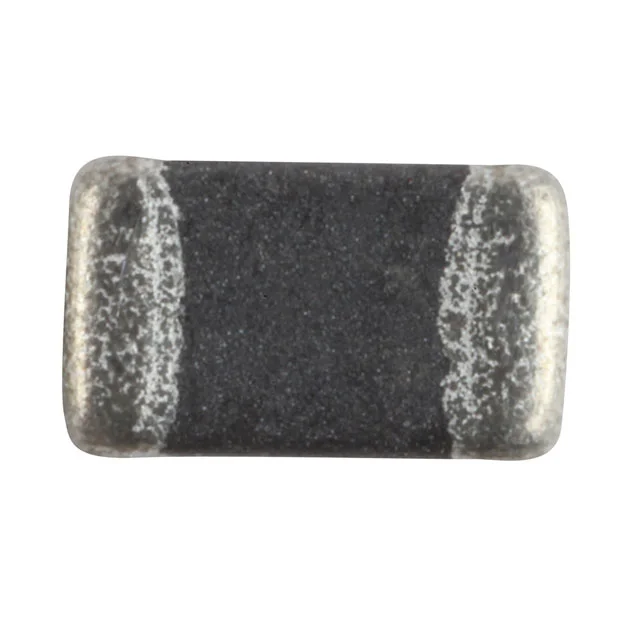

FIXED IND 22NH 150MA 1.2 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MCL2V0603-220-R.
MCL2V0603-220-R has an inductance value of 22 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MCL2V0603-220-R is rated for 150 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MCL2V0603-220-R lists a DC resistance of 1.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MCL2V0603-220-R uses a package or case of 0201 (0603 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MCL2V0603-220-R to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 22 nH |
| Tolerance | ±5% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 1.2Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Case / Size | 0201 (0603 Metric) |
| Package / Case | 0201 (0603 Metric) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 22NH 150MA 1.2 OHM SMD |
| Series | MCL2V |
| Product Status | Active |
| Type / Construction | Multilayer |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 14 @ 500MHz |
| Self Resonant Frequency | 1.9GHz |
| Inductance Test Frequency | 500 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0201 |
| Height - Seated (Max) | 0.013" (0.33mm) |
