Description

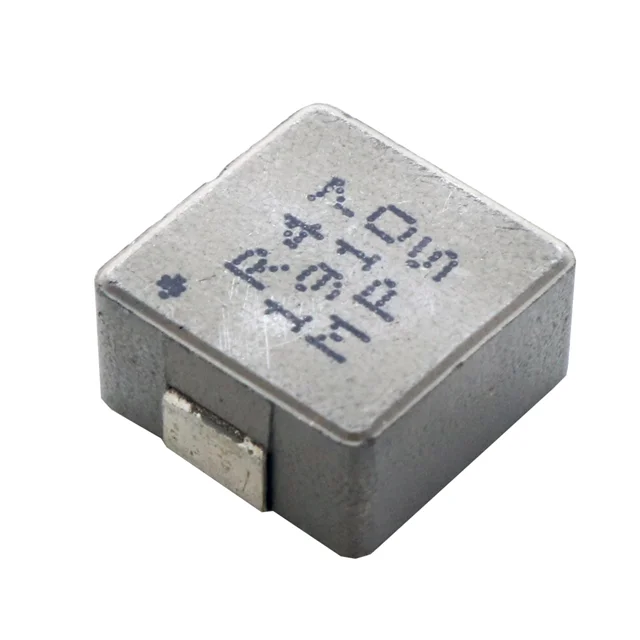

FIXED IND 15UH 8.5A 21.8 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPL-AY1265-150.
MPL-AY1265-150 has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPL-AY1265-150 is rated for 8.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPL-AY1265-150 lists a DC resistance of 21.8mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPL-AY1265-150 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPL-AY1265-150 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 15 µH |
| Current Rating | 8.5 A |
| DC Resistance (DCR) | 21.8mOhm |
| Saturation Current | 12A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | Monolithic Power Systems Inc. |
| Description | FIXED IND 15UH 8.5A 21.8 MOHM |
| Series | MPL-AY |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.256" (6.50mm) |
