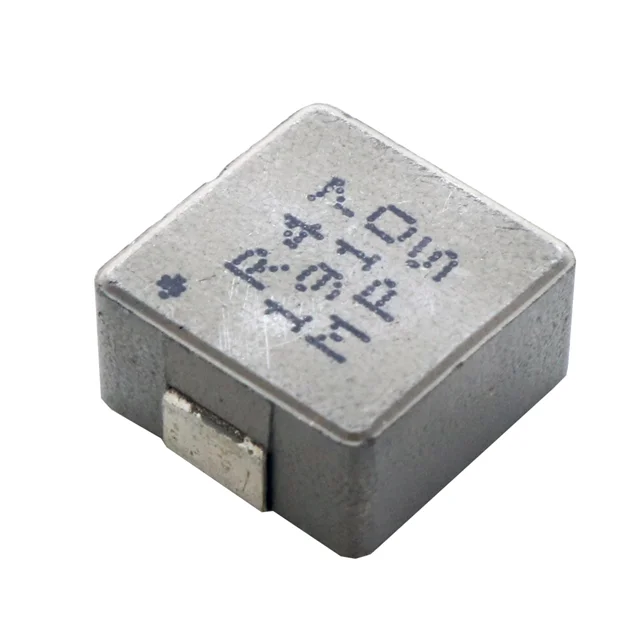

FIXED IND 1.8UH 20A 3.3 MOHM SMD
| Inductance | 1.8 µH |
| Tolerance | - |
| Current Rating | 20 A |
| DC Resistance (DCR) | 3.3mOhm |
| saturationCurrent | 29A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Supplier | Monolithic Power Systems Inc. |
| Description | FIXED IND 1.8UH 20A 3.3 MOHM SMD |
| Series | MPL-AY |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.256" (6.50mm) |
| features | - |
