Description

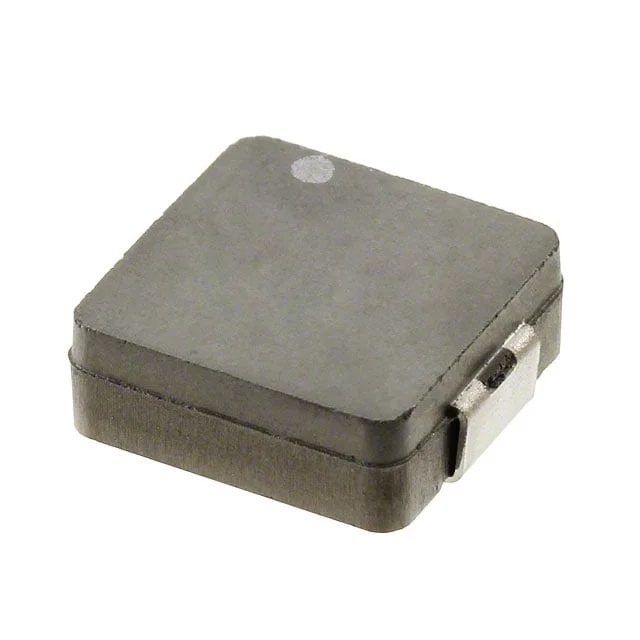

FIXED IND 3.3UH 8.8A 14 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPLC1040L3R3.
MPLC1040L3R3 has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPLC1040L3R3 is rated for 8.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPLC1040L3R3 lists a DC resistance of 14mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPLC1040L3R3 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPLC1040L3R3 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 8.8 A |
| DC Resistance (DCR) | 14mOhm Max |
| Saturation Current | 9.3A |
| Operating Temperature | -20°C ~ 120°C |
| Dimensions | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | KEMET |
| Description | FIXED IND 3.3UH 8.8A 14 MOHM SMD |
| Series | MPLC |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.157" (4.00mm) |
