Description

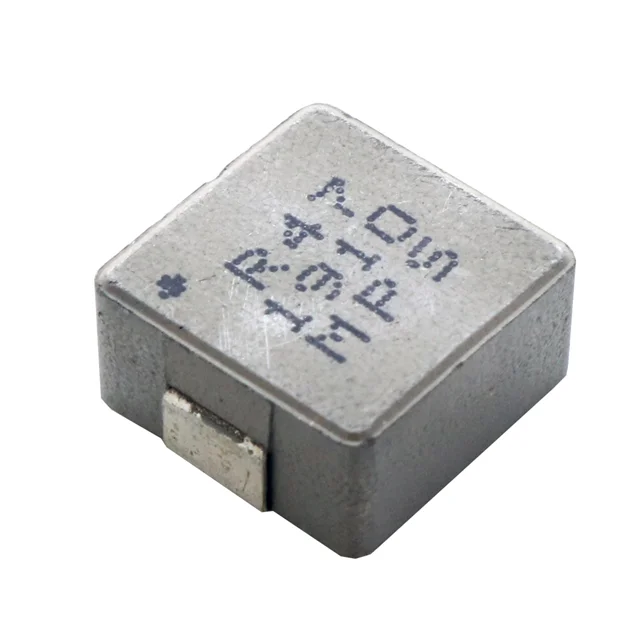

FIXED IND 6.8UH 12A 9.9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPL-AY1265-6R8.
MPL-AY1265-6R8 has an inductance value of 6.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPL-AY1265-6R8 is rated for 12 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPL-AY1265-6R8 lists a DC resistance of 9.9mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPL-AY1265-6R8 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPL-AY1265-6R8 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 6.8 µH |
| Current Rating | 12 A |
| DC Resistance (DCR) | 9.9mOhm |
| Saturation Current | 19.5A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | Monolithic Power Systems Inc. |
| Description | FIXED IND 6.8UH 12A 9.9 MOHM SMD |
| Series | MPL-AY |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.256" (6.50mm) |
