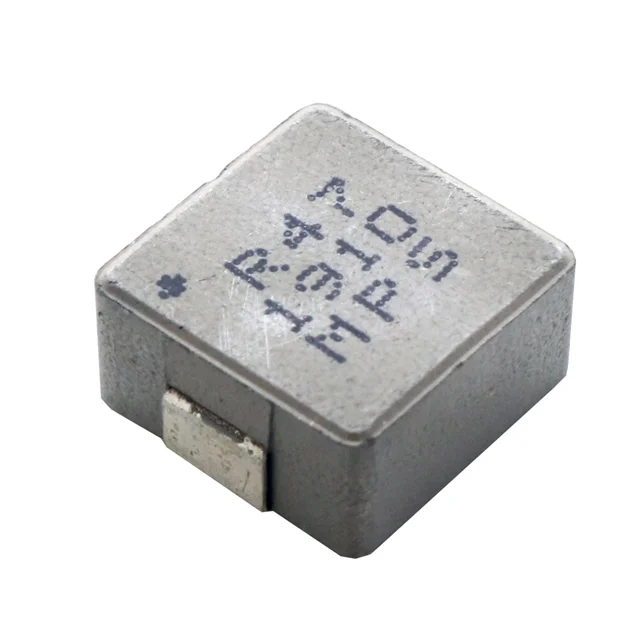

Description
FIXED IND 8.2UH 11.5A 12.5 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPL-AY1265-8R2.
MPL-AY1265-8R2 has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPL-AY1265-8R2 is rated for 11.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPL-AY1265-8R2 lists a DC resistance of 12.5mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPL-AY1265-8R2 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPL-AY1265-8R2 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | - |
| Current Rating | 11.5 A |
| DC Resistance (DCR) | 12.5mOhm |
| Saturation Current | 18A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | Monolithic Power Systems Inc. |
| Description | FIXED IND 8.2UH 11.5A 12.5 MOHM |
| Series | MPL-AY |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | - |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Features | - |
