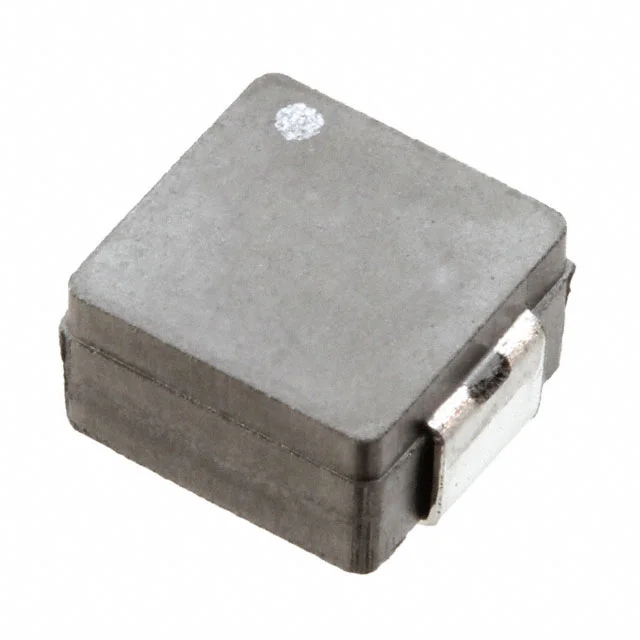

FIXED IND 2.2UH 9.3A 13 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 9.3 A |
| DC Resistance (DCR) | 13mOhm Max |
| saturationCurrent | 9A |
| Operating Temperature | -20°C ~ 120°C |
| Dimensions | 0.307" L x 0.264" W (7.80mm x 6.70mm) |
| Case / Size | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 2.2UH 9.3A 13 MOHM SMD |
| Series | MPLCH |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
