Description

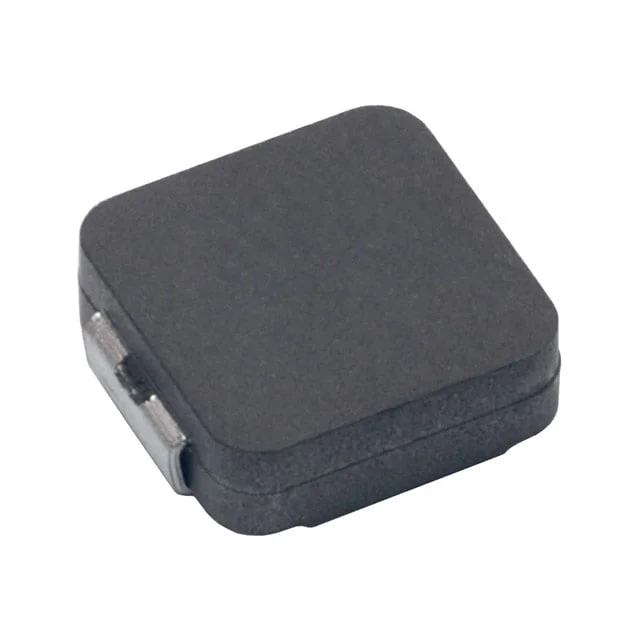

FIXED IND 330NH 17.2A 4.2 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPX1D0624LR33.
MPX1D0624LR33 has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPX1D0624LR33 is rated for 17.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPX1D0624LR33 lists a DC resistance of 4.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPX1D0624LR33 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPX1D0624LR33 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 17.2 A |
| DC Resistance (DCR) | 4.2mOhm Max |
| Saturation Current | 22.5A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.276" L x 0.256" W (7.00mm x 6.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 330NH 17.2A 4.2 MOHM |
| Series | METCOM MPX |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.094" (2.40mm) |
