Description

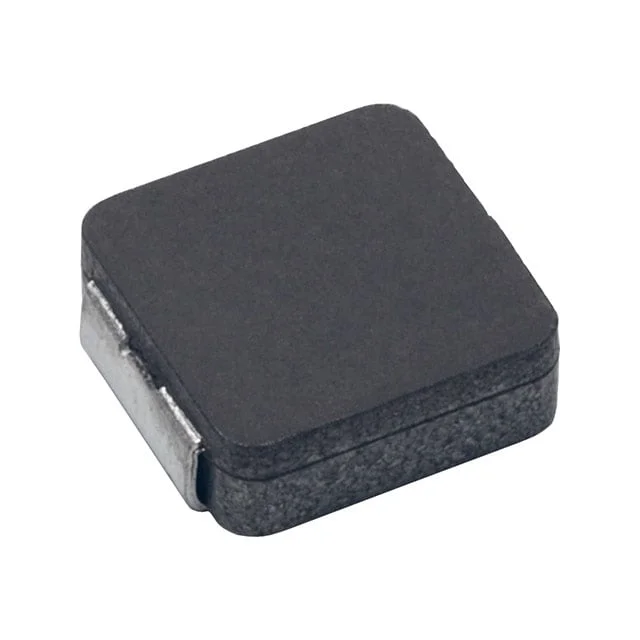

FIXED IND 1.5UH 14A 9.1 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPX1D0830L1R5.
MPX1D0830L1R5 has an inductance value of 1.5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPX1D0830L1R5 is rated for 14 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPX1D0830L1R5 lists a DC resistance of 9.1mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPX1D0830L1R5 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPX1D0830L1R5 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 14 A |
| DC Resistance (DCR) | 9.1mOhm Max |
| Saturation Current | 18A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.341" L x 0.315" W (8.65mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 1.5UH 14A 9.1 MOHM SMD |
| Series | METCOM MPX |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
