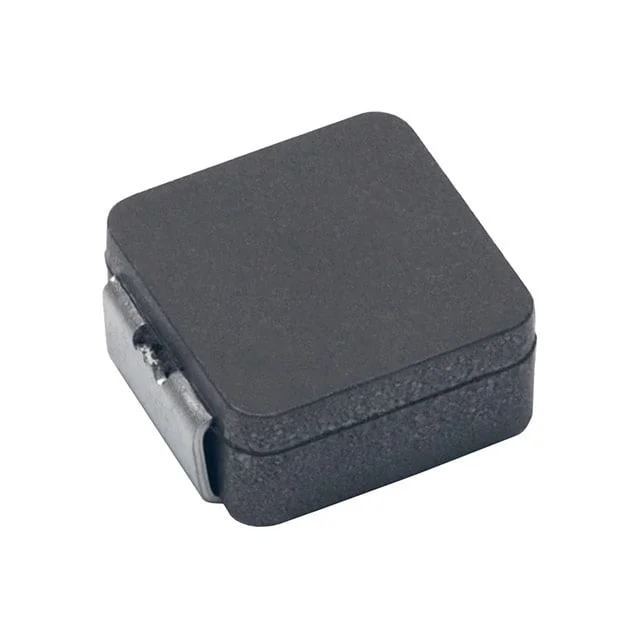

FIXED IND 220NH 35.4A 1.5 MOHM
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating | 35.4 A |
| DC Resistance (DCR) | 1.5mOhm Max |
| saturationCurrent | 53A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.341" L x 0.315" W (8.65mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 220NH 35.4A 1.5 MOHM |
| Series | METCOM MPX |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
