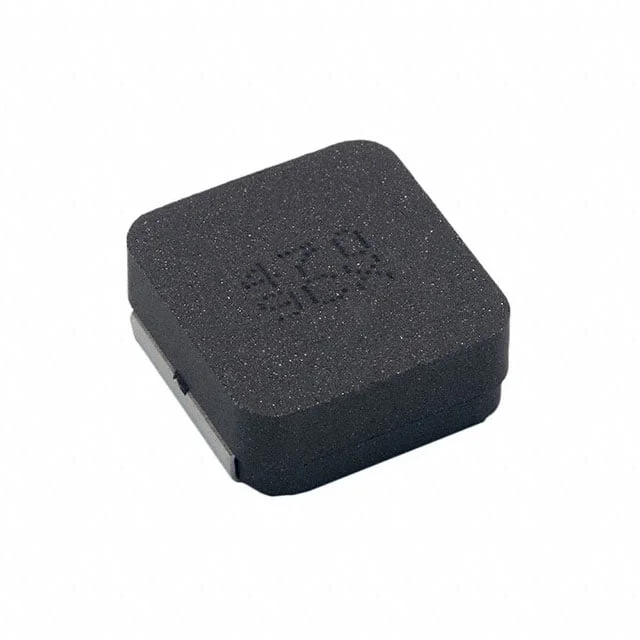

Description
FIXED IND 2.2UH 14.6A 7.9 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPXV1D1040L2R2.
MPXV1D1040L2R2 has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPXV1D1040L2R2 is rated for 14.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPXV1D1040L2R2 lists a DC resistance of 7.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPXV1D1040L2R2 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPXV1D1040L2R2 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 14.6 A |
| DC Resistance (DCR) | 7.9mOhm Max |
| Saturation Current | 18.5A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.425" L x 0.394" W (10.80mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 2.2UH 14.6A 7.9 MOHM |
| Series | METCOM MPXV |
| Product Status | Active |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Self Resonant Frequency | 23MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.157" (4.00mm) |
