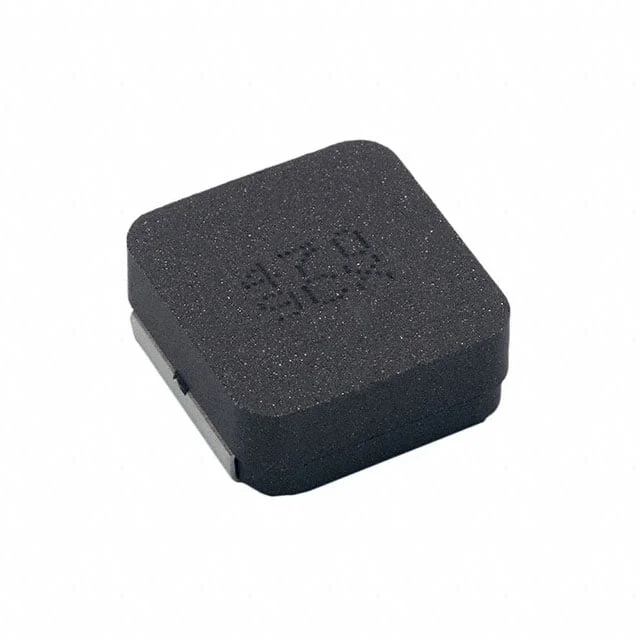

FIXED IND 330NH 29.7A 1.9 MOHM
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 29.7 A |
| DC Resistance (DCR) | 1.9mOhm Max |
| saturationCurrent | 47A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.425" L x 0.394" W (10.80mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 330NH 29.7A 1.9 MOHM |
| Series | METCOM MPXV |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 75MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.157" (4.00mm) |
| features | - |
