Description

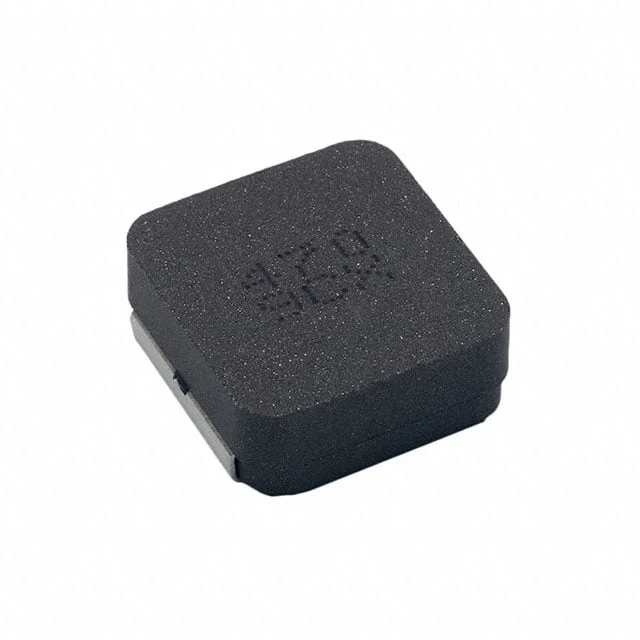

FIXED IND 1UH 21.5A 4.2 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPXV1D1235L1R0.
MPXV1D1235L1R0 has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPXV1D1235L1R0 is rated for 21.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPXV1D1235L1R0 lists a DC resistance of 4.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPXV1D1235L1R0 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPXV1D1235L1R0 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 21.5 A |
| DC Resistance (DCR) | 4.2mOhm Max |
| Saturation Current | 32.5A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.520" L x 0.492" W (13.20mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 1UH 21.5A 4.2 MOHM SMD |
| Series | METCOM MPXV |
| Product Status | Active |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Self Resonant Frequency | 33MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.138" (3.50mm) |
