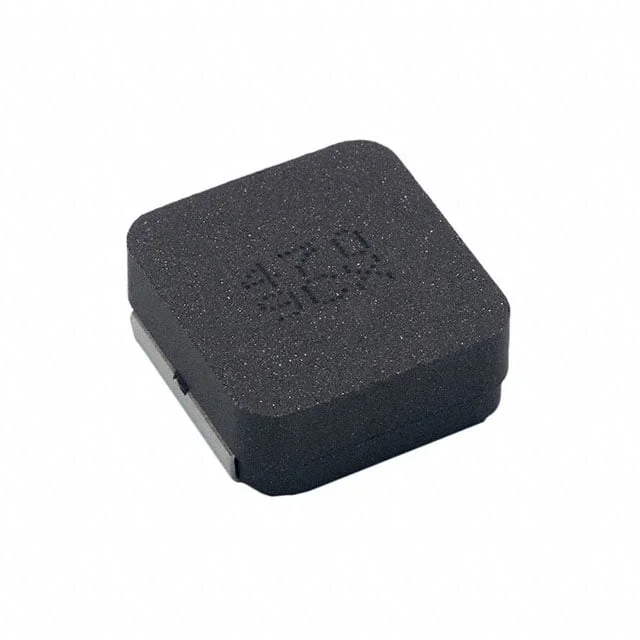

FIXED IND 3.3UH 12.5A 12.2 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 12.5 A |
| DC Resistance (DCR) | 12.2mOhm Max |
| saturationCurrent | 18A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.520" L x 0.492" W (13.20mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 3.3UH 12.5A 12.2 MOHM |
| Series | METCOM MPXV |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 18MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.138" (3.50mm) |
| features | - |
