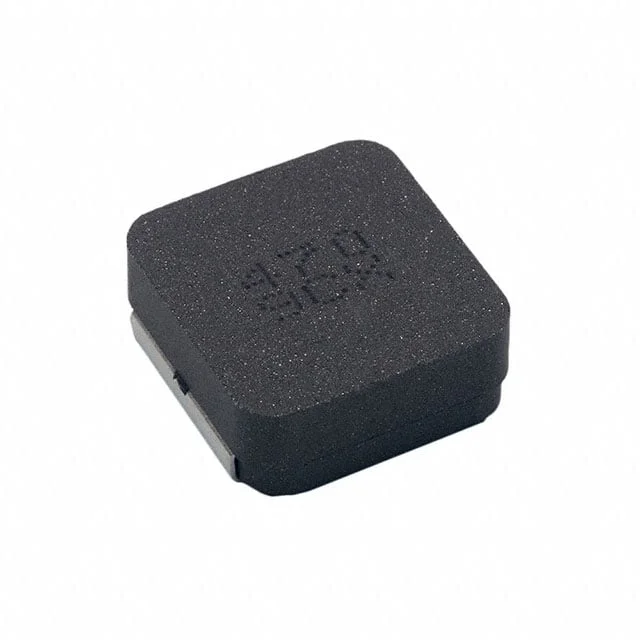

FIXED IND 33UH 7.5A 47.3 MOHM
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 7.5 A |
| DC Resistance (DCR) | 47.3mOhm Max |
| saturationCurrent | 12A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.669" L x 0.673" W (17.00mm x 17.10mm) |
| Case / Size | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 33UH 7.5A 47.3 MOHM |
| Series | METCOM MPXV |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 3.5MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.276" (7.00mm) |
| features | - |
