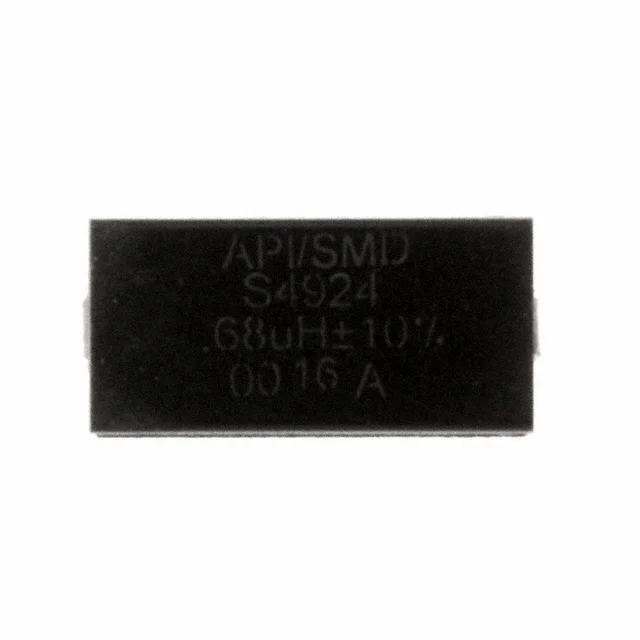

FIXED IND 680NH 915MA 450 MOHM
| Inductance | 680 nH |
| Tolerance | ±10% |
| Current Rating | 915 mA |
| DC Resistance (DCR) | 450mOhm Max |
| saturationCurrent | 915mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.505" L x 0.240" W (12.82mm x 6.09mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 680NH 915MA 450 MOHM |
| Series | S4924 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Phenolic |
| shielding | Shielded |
| qFactor | 42 @ 25MHz |
| selfResonantFreq | 190MHz |
| ratings | - |
| testFrequency | 25 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.220" (5.58mm) |
