Description
FIXED IND 10UH 3A 40 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SBCP-14HY100B.
SBCP-14HY100B has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SBCP-14HY100B is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SBCP-14HY100B lists a DC resistance of 40mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SBCP-14HY100B uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SBCP-14HY100B to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 40mOhm Max |
| Saturation Current | 10.3A |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 0.472" Dia (12.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | KEMET |
| Description | FIXED IND 10UH 3A 40 MOHM TH |
| Series | SBCP |
| Product Status | Active |

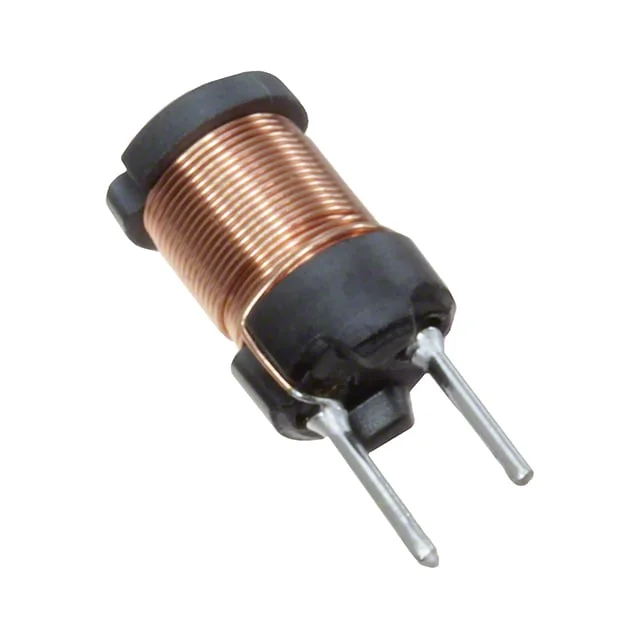

| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.591" (15.00mm) |
