Description

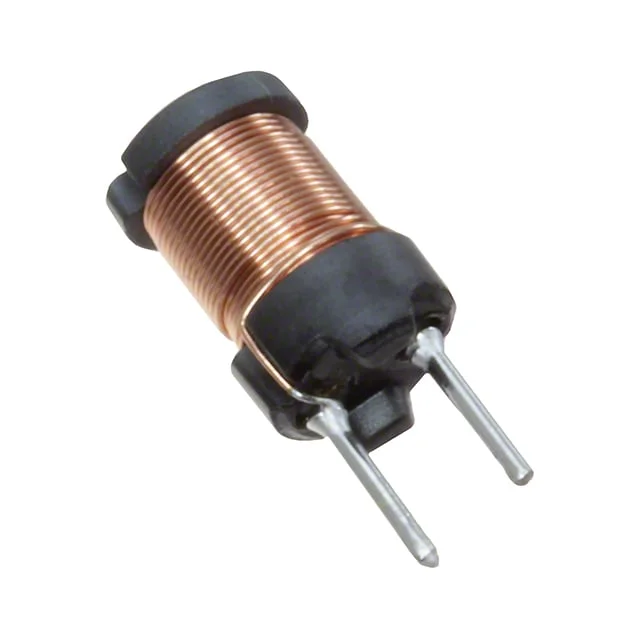

FIXED IND 100UH 1.5A 140 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SBCP-14HY101B.
SBCP-14HY101B has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SBCP-14HY101B is rated for 1.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SBCP-14HY101B lists a DC resistance of 140mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SBCP-14HY101B uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SBCP-14HY101B to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 140mOhm Max |
| Saturation Current | 3.1A |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 0.472" Dia (12.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | KEMET |
| Description | FIXED IND 100UH 1.5A 140 MOHM TH |
| Series | SBCP |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.591" (15.00mm) |
