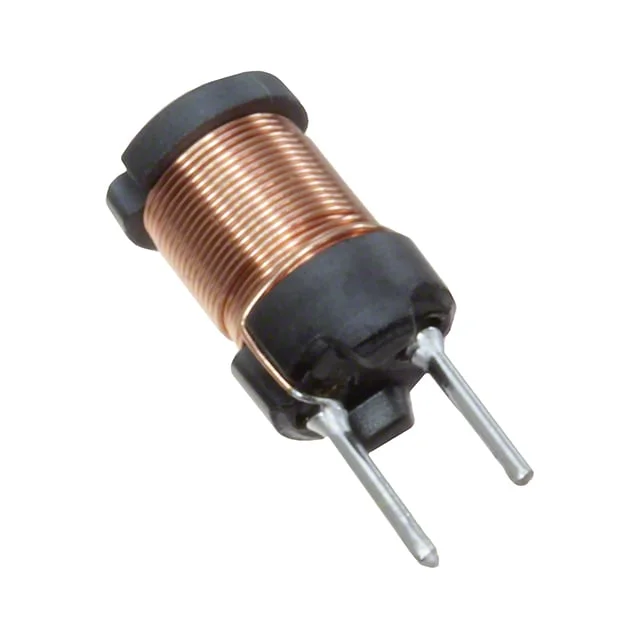

FIXED IND 6.8MH 220MA 7.17 OHM
| Inductance | 6.8 mH |
| Tolerance | ±10% |
| Current Rating | 220 mA |
| DC Resistance (DCR) | 7.17Ohm Max |
| saturationCurrent | 380mA |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 0.472" Dia (12.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Supplier | KEMET |
| Description | FIXED IND 6.8MH 220MA 7.17 OHM |
| Series | SBCP |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 10 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.591" (15.00mm) |
| features | - |
