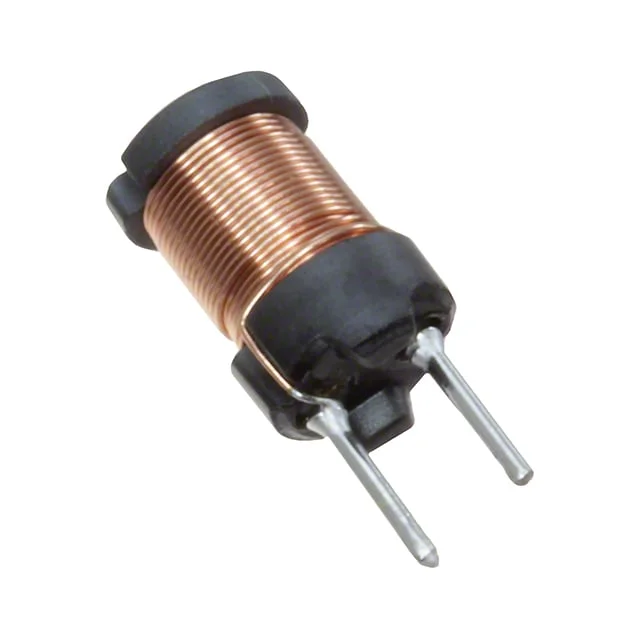

FIXED IND 15UH 1.25A 87 MOHM TH
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.25 A |
| DC Resistance (DCR) | 87mOhm Max |
| saturationCurrent | 1.26A |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 0.197" Dia (5.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Supplier | KEMET |
| Description | FIXED IND 15UH 1.25A 87 MOHM TH |
| Series | SBCP |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 10 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.335" (8.50mm) |
| features | - |
