Description

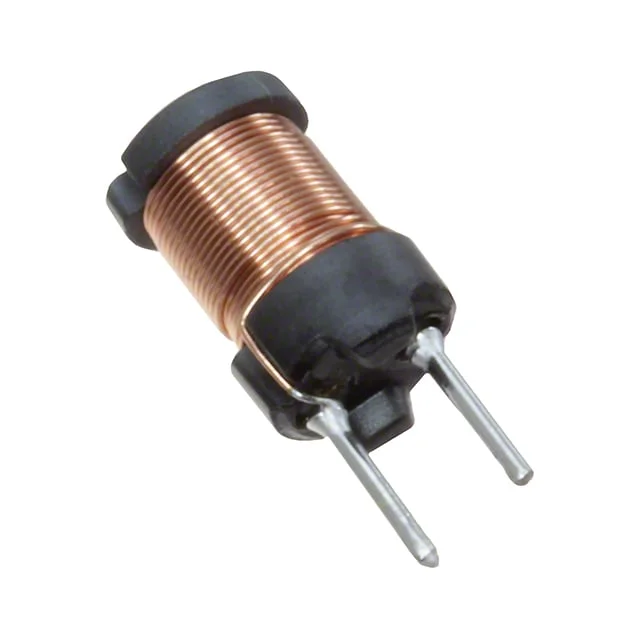

FIXED IND 270UH 300MA 1.3 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SBCP-47HY271B.
SBCP-47HY271B has an inductance value of 270 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SBCP-47HY271B is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SBCP-47HY271B lists a DC resistance of 1.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SBCP-47HY271B uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SBCP-47HY271B to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 270 µH |
| Tolerance | ±10% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 1.3Ohm Max |
| Saturation Current | 300mA |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 0.197" Dia (5.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | KEMET |
| Description | FIXED IND 270UH 300MA 1.3 OHM TH |
| Series | SBCP |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.335" (8.50mm) |
