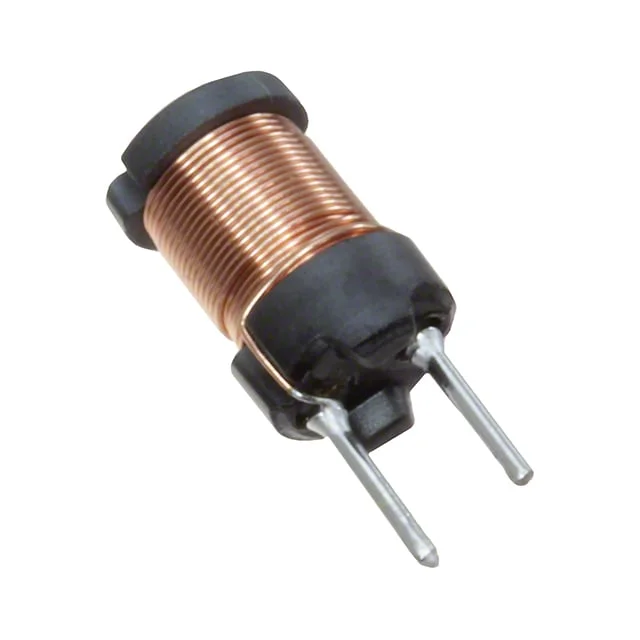

Description
FIXED IND 2.7UH 2.45A 32 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SBCP-47HY2R7B.
SBCP-47HY2R7B has an inductance value of 2.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SBCP-47HY2R7B is rated for 2.45 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SBCP-47HY2R7B lists a DC resistance of 32mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SBCP-47HY2R7B uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SBCP-47HY2R7B to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.7 µH |
| Tolerance | ±20% |
| Current Rating | 2.45 A |
| DC Resistance (DCR) | 32mOhm Max |
| Saturation Current | 2.92A |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 0.197" Dia (5.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | KEMET |
| Description | FIXED IND 2.7UH 2.45A 32 MOHM TH |
| Series | SBCP |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.335" (8.50mm) |
