Description

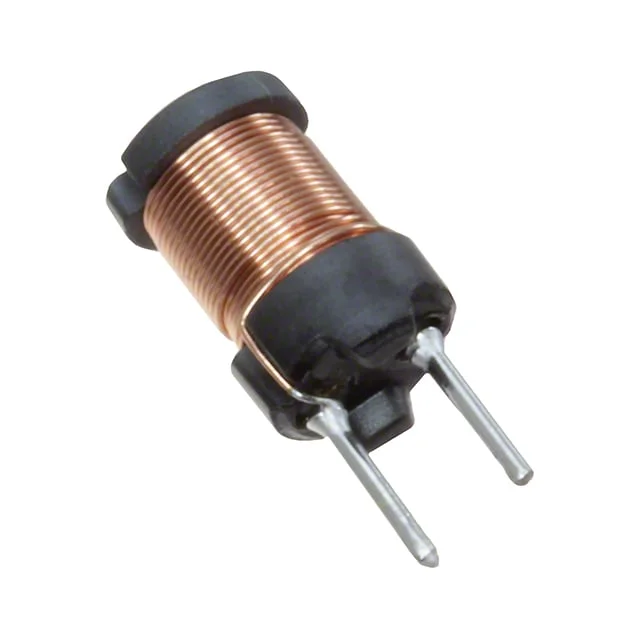

FIXED IND 33UH 870MA 169 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SBCP-47HY330B.
SBCP-47HY330B has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SBCP-47HY330B is rated for 870 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SBCP-47HY330B lists a DC resistance of 169mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SBCP-47HY330B uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SBCP-47HY330B to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 870 mA |
| DC Resistance (DCR) | 169mOhm Max |
| Saturation Current | 870mA |
| Operating Temperature | -20°C ~ 105°C |
| Dimensions | 0.197" Dia (5.00mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | KEMET |
| Description | FIXED IND 33UH 870MA 169 MOHM TH |
| Series | SBCP |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.335" (8.50mm) |
