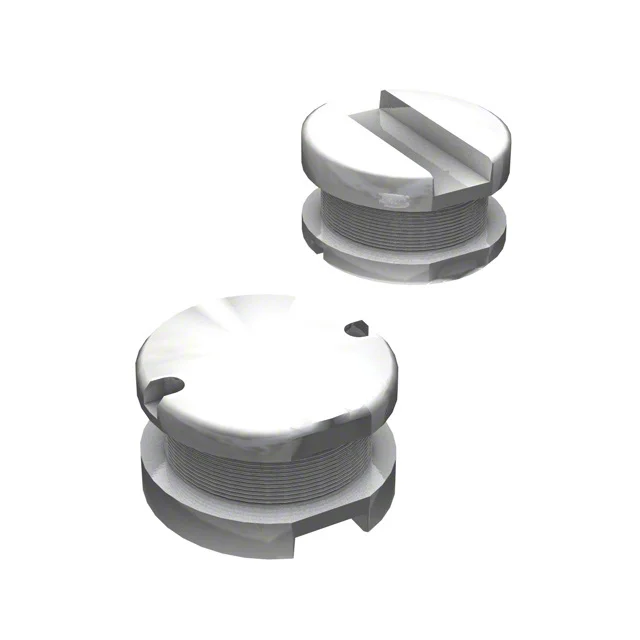

FIXED IND 2.5UH SURFACE MOUNT
| Inductance | 2.5 µH |
| Tolerance | ±20% |
| Current Rating | - |
| DC Resistance (DCR) | - |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.5UH SURFACE MOUNT |
| Series | SDR1006 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.228" (5.80mm) |
| features | - |
