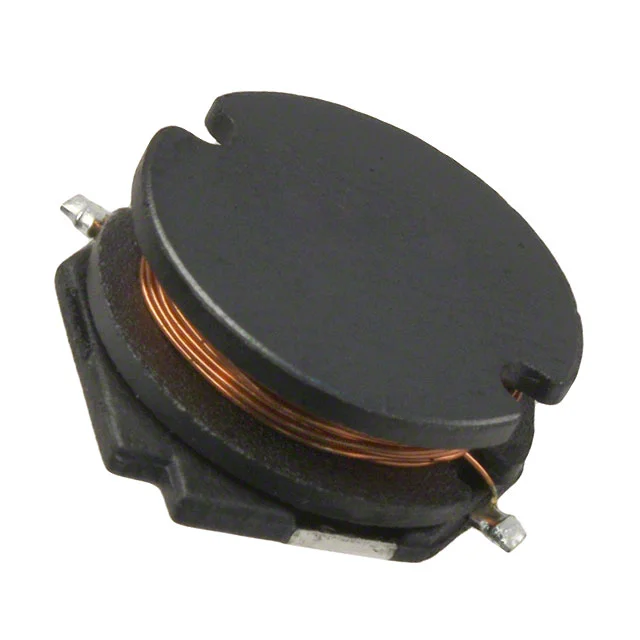

FIXED IND 2.5UH 7.2A 9.8 MOHM
| Inductance | 2.5 µH |
| Tolerance | ±25% |
| Current Rating | 7.2 A |
| DC Resistance (DCR) | 9.8mOhm Max |
| saturationCurrent | 8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.5UH 7.2A 9.8 MOHM |
| Series | SDR1305 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 19 @ 7.96MHz |
| selfResonantFreq | 61MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.201" (5.10mm) |
| features | - |
