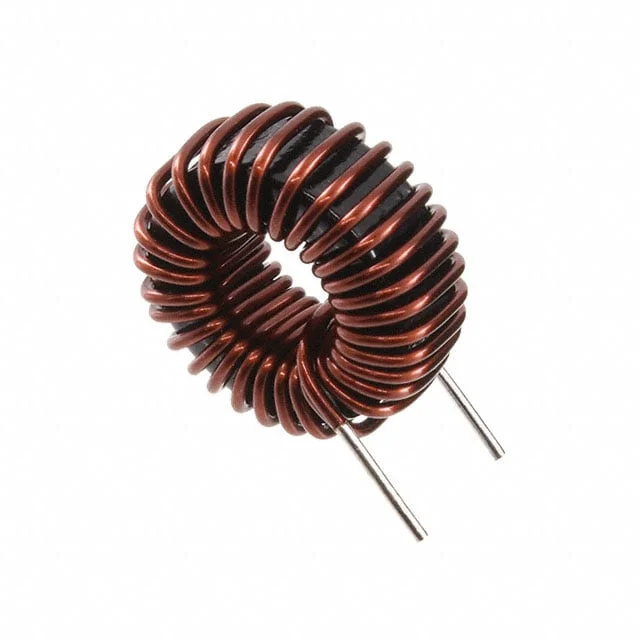

FIXED IND 1.5UH 3A 25 MOHM TH
| Inductance | 1.5 µH |
| Tolerance | - |
| Current Rating | 3 A |
| DC Resistance (DCR) | 25mOhm |
| saturationCurrent | - |
| Operating Temperature | -20°C ~ 60°C |
| Dimensions | 0.374" L x 0.197" W (9.50mm x 5.00mm) |
| Case / Size | Vertical, 2 PC Pin |
| Supplier | KEMET |
| Description | FIXED IND 1.5UH 3A 25 MOHM TH |
| Series | SNT |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Nickel Zinc Ferrite (NiZn) |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | Nonstandard, 2 Lead |
| heightMax | 0.500" (12.70mm) |
| features | - |
