Description

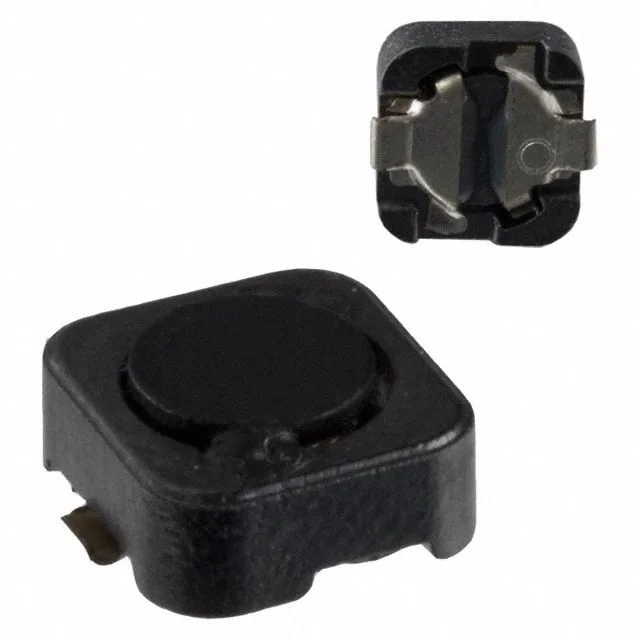

FIXED IND 12UH 1.3A 200 MOHM SMD
Specifications
Inductance
12 µH
Current Rating
1.3 A
DC Resistance (DCR)
200mOhm Max
Dimensions
0.260" L x 0.244" W (6.60mm x 6.20mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 200mOhm Max |
| saturationCurrent | 1.3A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.260" L x 0.244" W (6.60mm x 6.20mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 12UH 1.3A 200 MOHM SMD |
| Series | SPD62R |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
