Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

SPD62R-473M

Delevan

47 µH• 700 mANonstandard

SPD62R-223M

Delevan

22 µH• 1 ANonstandard

SPD62R-472M

Delevan

4.7 µH• 2 ANonstandard

SPD62R-352M

Delevan

3.5 µH• 2.5 ANonstandard

SPD62R-103M

Delevan

10 µH• 1.4 ANonstandard

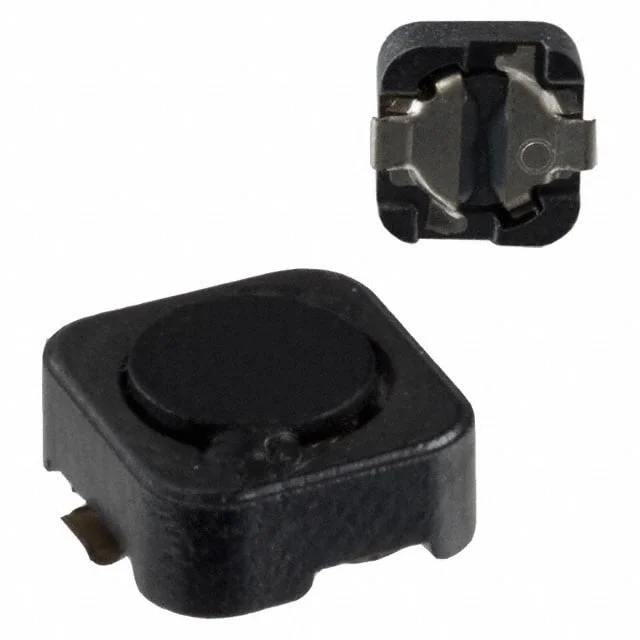

SPD62R-333M

Delevan

33 µH• 820 mANonstandard

SPD62R-124M

Delevan

120 µH• 390 mANonstandard

SPD62R-682M

Delevan

6.8 µH• 1.8 ANonstandard

SPD62R-123M

Delevan

12 µH• 1.3 ANonstandard

SPD62R-153M

Delevan

15 µH• 1.2 ANonstandard

SPD62R-183M

Delevan

18 µH• 1.1 ANonstandard

SPD62R-273M

Delevan

27 µH• 940 mANonstandard

SPD62R-393M

Delevan

39 µH• 780 mANonstandard

SPD62R-823M

Delevan

82 µH• 500 mANonstandard

SPD62R-104M

Delevan

100 µH• 410 mANonstandard

SPD62R-184M

Delevan

180 µH• 350 mANonstandard

SPD62R-224M

Delevan

220 µH• 320 mANonstandard

SPD62R-274M

Delevan

270 µH• 290 mANonstandard

SPD62R-334M

Delevan

330 µH• 220 mANonstandard

SPD62R-154M

Delevan

150 µH• 370 mANonstandard

SPD62R-563M

Delevan

56 µH• 680 mANonstandard

SPD62R-683M

Delevan

68 µH• 560 mANonstandard

SPD62R-122M

Delevan

1.2 µH• 3.5 ANonstandard

SPD62R-242M

Delevan

2.4 µH• 2.8 ANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
SPD62R-473M Delevan	47 µH	700 mA	750mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-223M Delevan	22 µH	1 A	400mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-472M Delevan	4.7 µH	2 A	150mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-352M Delevan	3.5 µH	2.5 A	120mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-103M Delevan	10 µH	1.4 A	180mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-333M Delevan	33 µH	820 mA	500mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-124M Delevan	120 µH	390 mA	1.7Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-682M Delevan	6.8 µH	1.8 A	170mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-123M Delevan	12 µH	1.3 A	200mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-153M Delevan	15 µH	1.2 A	300mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-183M Delevan	18 µH	1.1 A	350mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-273M Delevan	27 µH	940 mA	450mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-393M Delevan	39 µH	780 mA	700mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-823M Delevan	82 µH	500 mA	1.45Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-104M Delevan	100 µH	410 mA	1.6Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-184M Delevan	180 µH	350 mA	2.1Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-224M Delevan	220 µH	320 mA	2.2Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-274M Delevan	270 µH	290 mA	3Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-334M Delevan	330 µH	220 mA	3.3Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-154M Delevan	150 µH	370 mA	1.8Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-563M Delevan	56 µH	680 mA	850mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-683M Delevan	68 µH	560 mA	1.2Ohm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-122M Delevan	1.2 µH	3.5 A	80mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
SPD62R-242M Delevan	2.4 µH	2.8 A	100mOhm Max	0.260" L x 0.244" W (6.60mm x 6.20mm)	Nonstandard	View PDF
