Description

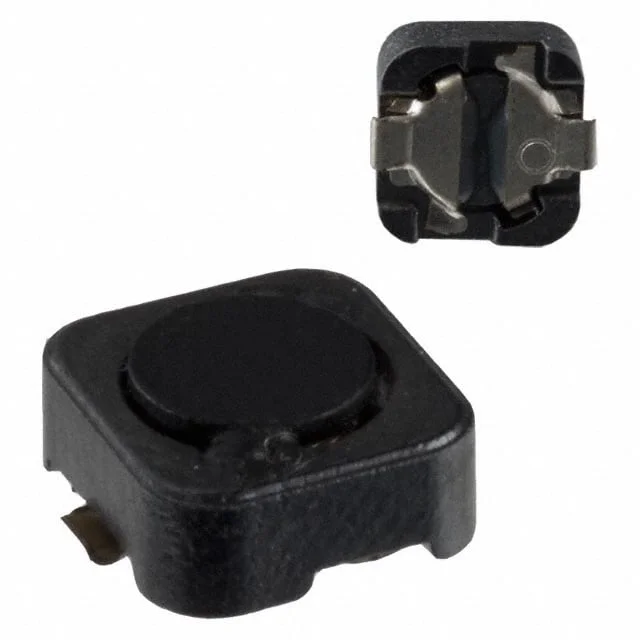

FIXED IND 150UH 370MA 1.8 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPD62R-154M.
SPD62R-154M has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPD62R-154M is rated for 370 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPD62R-154M lists a DC resistance of 1.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPD62R-154M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPD62R-154M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating | 370 mA |
| DC Resistance (DCR) | 1.8Ohm Max |
| Saturation Current | 370mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.260" L x 0.244" W (6.60mm x 6.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 150UH 370MA 1.8 OHM |
| Series | SPD62R |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.118" (3.00mm) |
