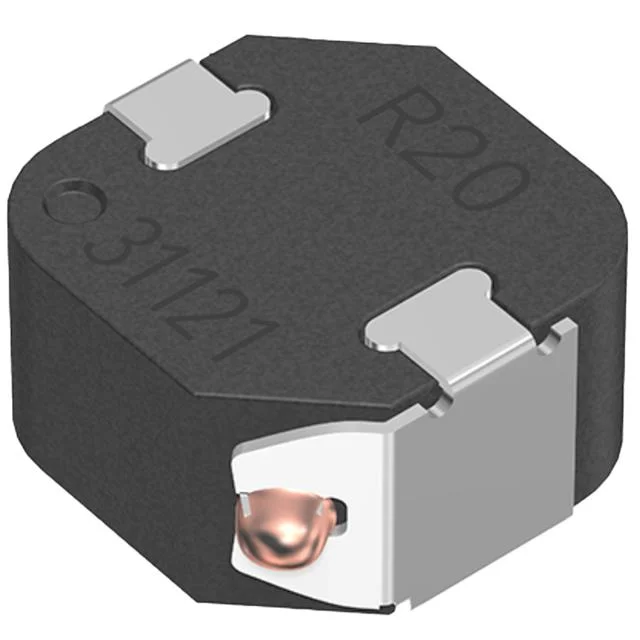

FIXED IND 680NH 11.3A 9.35 MOHM
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 11.3 A |
| DC Resistance (DCR) | 9.35mOhm Max |
| saturationCurrent | 9.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.205" L x 0.197" W (5.20mm x 5.00mm) |
| Case / Size | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 680NH 11.3A 9.35 MOHM |
| Series | SPM |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
