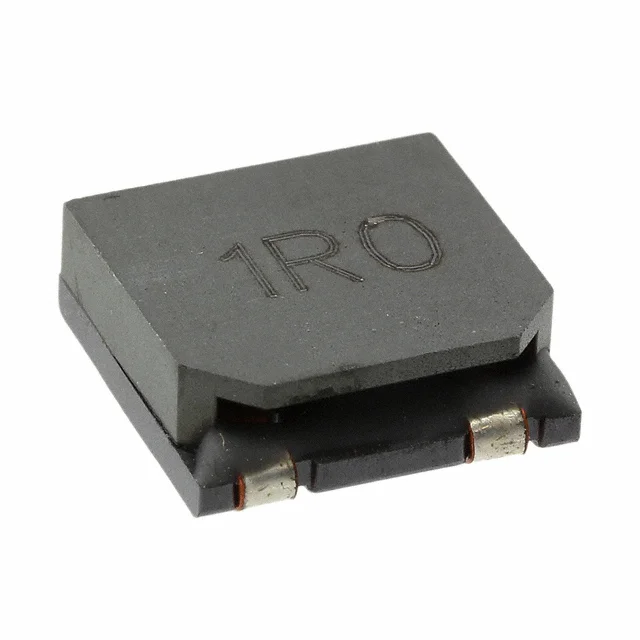

FIXED IND 2.5UH 11.5A 3.4 MOHM
| Inductance | 2.5 µH |
| Tolerance | ±25% |
| Current Rating | 11.5 A |
| DC Resistance (DCR) | 3.4mOhm Max |
| saturationCurrent | 12A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.5UH 11.5A 3.4 MOHM |
| Series | SRP1205 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 40MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.220" (5.60mm) |
| features | - |
