Description

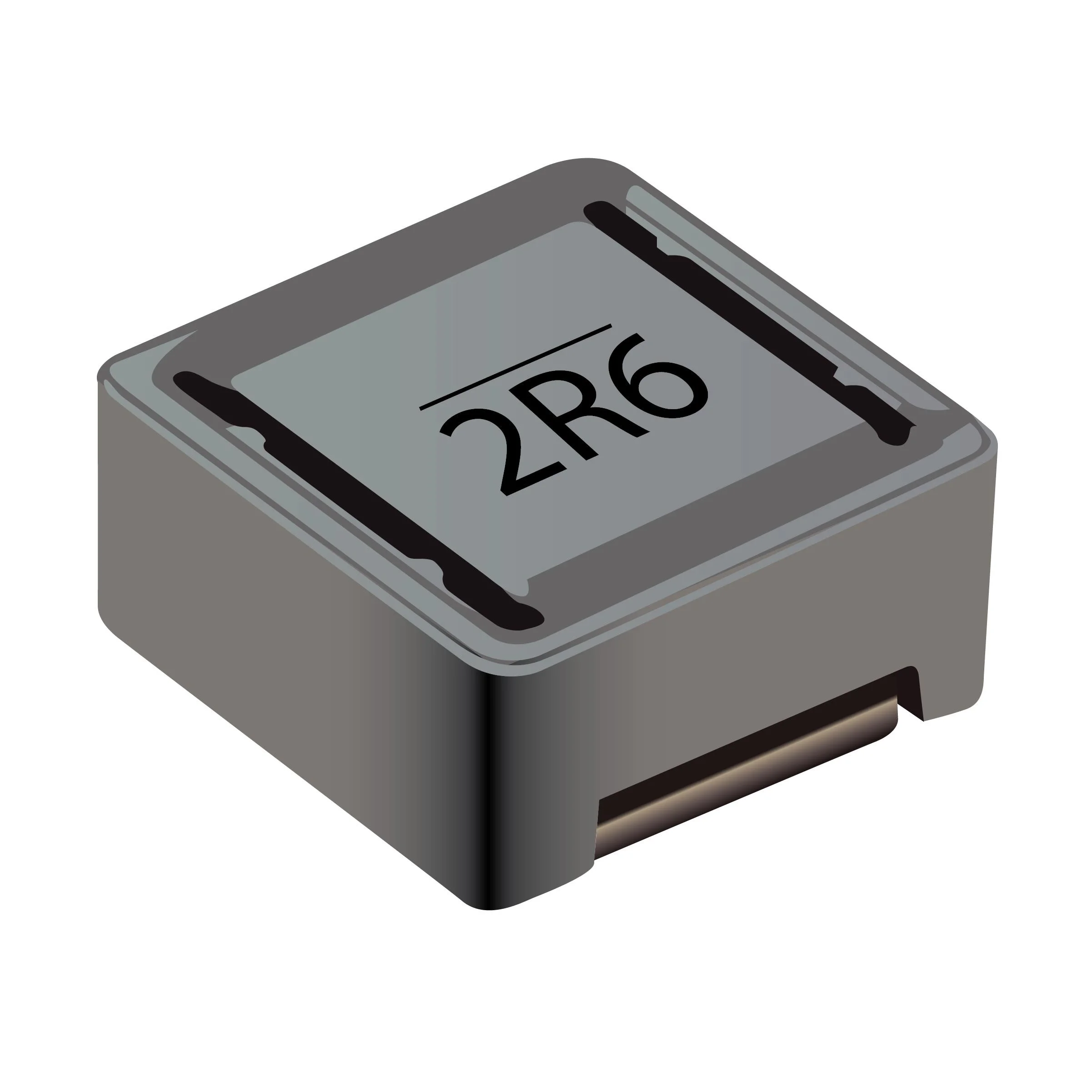

FIXED IND 2.6UH 3.25A 30 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRR5828A-2R6Y.
SRR5828A-2R6Y has an inductance value of 2.6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRR5828A-2R6Y is rated for 3.25 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRR5828A-2R6Y lists a DC resistance of 30mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRR5828A-2R6Y uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRR5828A-2R6Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.6 µH |
| Tolerance | ±30% |
| Current Rating | 3.25 A |
| DC Resistance (DCR) | 30mOhm Max |
| Saturation Current | 3.15A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.6UH 3.25A 30 MOHM |
| Series | SRR5828A |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 78MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
