Description

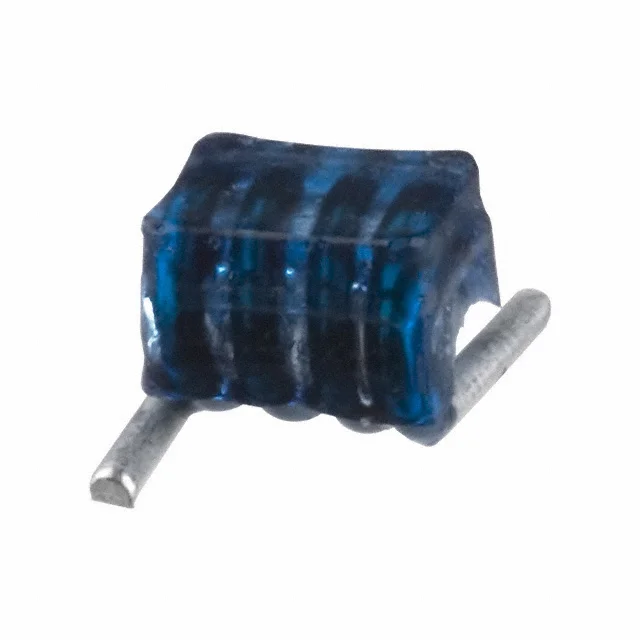

FIXED IND 22NH 3A SURFACE MOUNT
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 4426R-7RC.
4426R-7RC has an inductance value of 22 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
4426R-7RC is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
4426R-7RC lists a DC resistance of -. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
4426R-7RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 4426R-7RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 nH |
| Tolerance | ±5% |
| Current Rating | 3 A |
| DC Resistance (DCR) | - |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.270" L x 0.125" W (6.86mm x 3.18mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 22NH 3A SURFACE MOUNT |
| Series | 4426R |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 102 @ 150MHz |
| Self Resonant Frequency | 3GHz |
| Ratings | - |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.120" (3.05mm) |
| Features | - |
