Series: 4426R

Browse series tables and compare the available specifications.

4426R

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

4426R-3

Delevan

Inductance: 8 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.120" W (3.68mm x 3.05mm)

4426R-10

Delevan

Inductance: 43 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.120" W (6.86mm x 3.05mm)

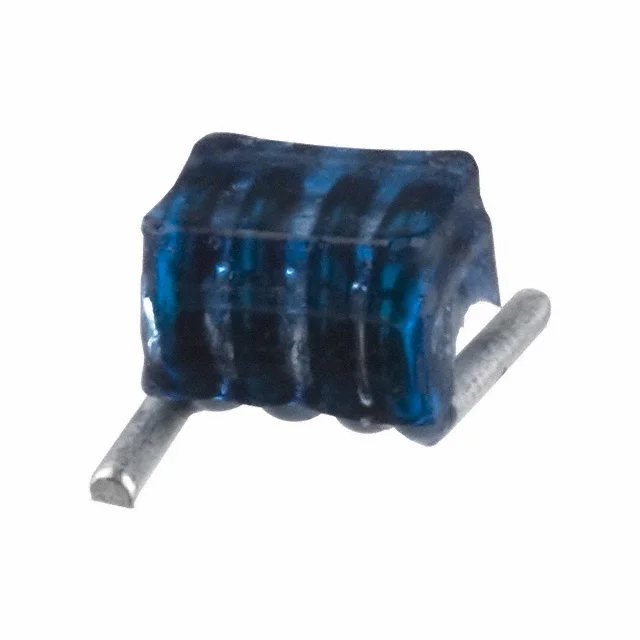

4426R-4

Delevan

Inductance: 12.5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.120" W (3.68mm x 3.05mm)

4426R-4NC

Delevan

Inductance: 12.5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.125" W (3.68mm x 3.18mm)

4426R-2NC

Delevan

Inductance: 5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.125" W (3.68mm x 3.18mm)

4426R-1NC

Delevan

Inductance: 2.5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.125" W (3.68mm x 3.18mm)

4426R-5NC

Delevan

Inductance: 18.5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.125" W (3.68mm x 3.18mm)

4426R-8NC

Delevan

Inductance: 28 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-6NC

Delevan

Inductance: 17.5 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-9NC

Delevan

Inductance: 35.5 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-10NC

Delevan

Inductance: 43 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-7NC

Delevan

Inductance: 22 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-3NC

Delevan

Inductance: 8 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.125" W (3.68mm x 3.18mm)

4426R-7

Delevan

Inductance: 22 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.120" W (6.86mm x 3.05mm)

4426R-2

Delevan

Inductance: 5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.120" W (3.68mm x 3.05mm)

4426R-8

Delevan

Inductance: 28 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.120" W (6.86mm x 3.05mm)

4426R-6

Delevan

Inductance: 17.5 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.120" W (6.86mm x 3.05mm)

4426R-1

Delevan

Inductance: 2.5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.120" W (3.68mm x 3.05mm)

4426R-9

Delevan

Inductance: 35.5 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.120" W (6.86mm x 3.05mm)

4426R-5

Delevan

Inductance: 18.5 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.120" W (3.68mm x 3.05mm)

4426R-3RC

Delevan

Inductance: 8 nH
Current: 3 A
DCR: -
Size: 0.145" L x 0.125" W (3.68mm x 3.18mm)

4426R-6RC

Delevan

Inductance: 17.5 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-7RC

Delevan

Inductance: 22 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-8RC

Delevan

Inductance: 28 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

4426R-9RC

Delevan

Inductance: 35.5 nH
Current: 3 A
DCR: -
Size: 0.270" L x 0.125" W (6.86mm x 3.18mm)

Product	Inductance	Current	DCR	Size	Package	Actions
4426R-3 Delevan	8 nH	3 A	-	0.145" L x 0.120" W (3.68mm x 3.05mm)	Nonstandard	View PDF
4426R-10 Delevan	43 nH	3 A	-	0.270" L x 0.120" W (6.86mm x 3.05mm)	Nonstandard	View PDF
4426R-4 Delevan	12.5 nH	3 A	-	0.145" L x 0.120" W (3.68mm x 3.05mm)	Nonstandard	View PDF
4426R-4NC Delevan	12.5 nH	3 A	-	0.145" L x 0.125" W (3.68mm x 3.18mm)	Nonstandard	View PDF
4426R-2NC Delevan	5 nH	3 A	-	0.145" L x 0.125" W (3.68mm x 3.18mm)	Nonstandard	View PDF
4426R-1NC Delevan	2.5 nH	3 A	-	0.145" L x 0.125" W (3.68mm x 3.18mm)	Nonstandard	View PDF
4426R-5NC Delevan	18.5 nH	3 A	-	0.145" L x 0.125" W (3.68mm x 3.18mm)	Nonstandard	View PDF
4426R-8NC Delevan	28 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-6NC Delevan	17.5 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-9NC Delevan	35.5 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-10NC Delevan	43 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-7NC Delevan	22 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-3NC Delevan	8 nH	3 A	-	0.145" L x 0.125" W (3.68mm x 3.18mm)	Nonstandard	View PDF
4426R-7 Delevan	22 nH	3 A	-	0.270" L x 0.120" W (6.86mm x 3.05mm)	Nonstandard	View PDF
4426R-2 Delevan	5 nH	3 A	-	0.145" L x 0.120" W (3.68mm x 3.05mm)	Nonstandard	View PDF
4426R-8 Delevan	28 nH	3 A	-	0.270" L x 0.120" W (6.86mm x 3.05mm)	Nonstandard	View PDF
4426R-6 Delevan	17.5 nH	3 A	-	0.270" L x 0.120" W (6.86mm x 3.05mm)	Nonstandard	View PDF
4426R-1 Delevan	2.5 nH	3 A	-	0.145" L x 0.120" W (3.68mm x 3.05mm)	Nonstandard	View PDF
4426R-9 Delevan	35.5 nH	3 A	-	0.270" L x 0.120" W (6.86mm x 3.05mm)	Nonstandard	View PDF
4426R-5 Delevan	18.5 nH	3 A	-	0.145" L x 0.120" W (3.68mm x 3.05mm)	Nonstandard	View PDF
4426R-3RC Delevan	8 nH	3 A	-	0.145" L x 0.125" W (3.68mm x 3.18mm)	Nonstandard	View PDF
4426R-6RC Delevan	17.5 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-7RC Delevan	22 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-8RC Delevan	28 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
4426R-9RC Delevan	35.5 nH	3 A	-	0.270" L x 0.125" W (6.86mm x 3.18mm)	Nonstandard	View PDF
