Description

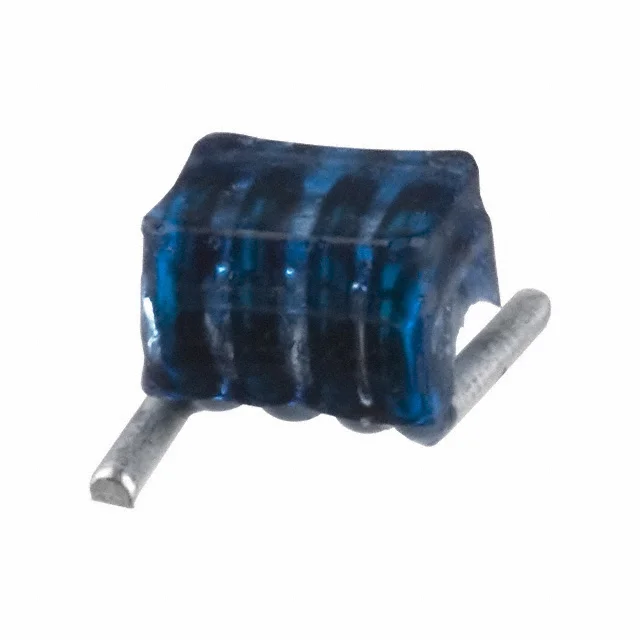

FIXED IND 35.5NH 3A SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 4426R-9RC.
4426R-9RC has an inductance value of 35.5 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
4426R-9RC is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
4426R-9RC lists a DC resistance of -. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
4426R-9RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 4426R-9RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 35.5 nH |
| Tolerance | ±5% |
| Current Rating | 3 A |
| DC Resistance (DCR) | - |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.270" L x 0.125" W (6.86mm x 3.18mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 35.5NH 3A SMD |
| Series | 4426R |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 112 @ 150MHz |
| Self Resonant Frequency | 1.8GHz |
| Ratings | - |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.120" (3.05mm) |
| Features | - |
