B82442T1104J000
TDK
- Inductance
- 100 µH
- Current
- 510 mA
- DCR
- 990mOhm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: B82442T1
Browse series tables and compare the available specifications.
B82442T1
B82442T1824J000
TDK
- Inductance
- 820 µH
- Current
- 170 mA
- DCR
- 7.86Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1564J000
TDK
- Inductance
- 560 µH
- Current
- 220 mA
- DCR
- 5.21Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1684J000
TDK
- Inductance
- 680 µH
- Current
- 210 mA
- DCR
- 5.87Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1124J000
TDK
- Inductance
- 120 µH
- Current
- 440 mA
- DCR
- 1.29Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1154J000
TDK
- Inductance
- 150 µH
- Current
- 410 mA
- DCR
- 1.5Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1105J000
TDK
- Inductance
- 1 mH
- Current
- 150 mA
- DCR
- 9.5Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1184J000
TDK
- Inductance
- 180 µH
- Current
- 350 mA
- DCR
- 1.96Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1394J000
TDK
- Inductance
- 390 µH
- Current
- 260 mA
- DCR
- 3.7Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)

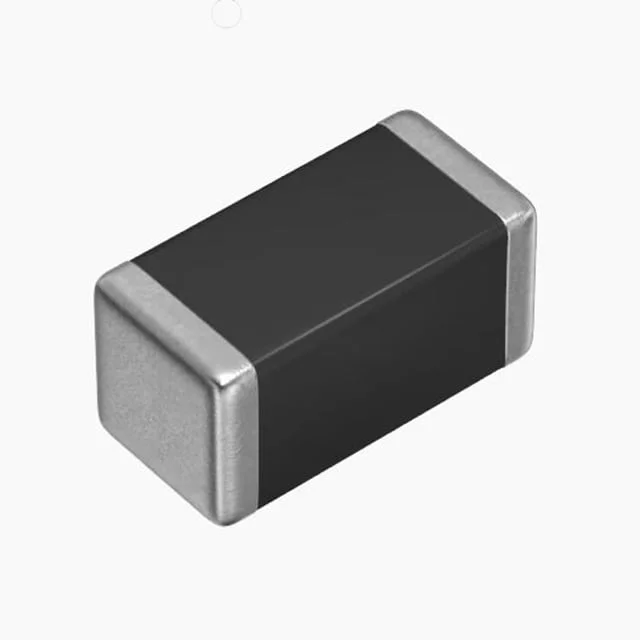

B82442T1474J000
TDK
- Inductance
- 470 µH
- Current
- 240 mA
- DCR
- 4.73Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1564J050
TDK
- Inductance
- 560 µH
- Current
- 220 mA
- DCR
- 5.21Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1824J050
TDK
- Inductance
- 820 µH
- Current
- 170 mA
- DCR
- 7.86Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1105J050
TDK
- Inductance
- 1 mH
- Current
- 150 mA
- DCR
- 9.5Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1104J050
TDK
- Inductance
- 100 µH
- Current
- 510 mA
- DCR
- 990mOhm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1124J050
TDK
- Inductance
- 120 µH
- Current
- 440 mA
- DCR
- 1.29Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1154J050
TDK
- Inductance
- 150 µH
- Current
- 410 mA
- DCR
- 1.5Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1394J050
TDK
- Inductance
- 390 µH
- Current
- 260 mA
- DCR
- 3.7Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
B82442T1474J050
TDK
- Inductance
- 470 µH
- Current
- 240 mA
- DCR
- 4.73Ohm Max
- Size
- 0.220" L x 0.197" W (5.60mm x 5.00mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
| 100 µH | 510 mA | 990mOhm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 820 µH | 170 mA | 7.86Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 560 µH | 220 mA | 5.21Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 680 µH | 210 mA | 5.87Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 120 µH | 440 mA | 1.29Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 150 µH | 410 mA | 1.5Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 1 mH | 150 mA | 9.5Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 180 µH | 350 mA | 1.96Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 390 µH | 260 mA | 3.7Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 470 µH | 240 mA | 4.73Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2-SMD, J-Lead | ||
| 560 µH | 220 mA | 5.21Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) | ||
| 820 µH | 170 mA | 7.86Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) | ||
| 1 mH | 150 mA | 9.5Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) | ||
| 100 µH | 510 mA | 990mOhm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) | ||
| 120 µH | 440 mA | 1.29Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) | ||
| 150 µH | 410 mA | 1.5Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) | ||
| 390 µH | 260 mA | 3.7Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) | ||
| 470 µH | 240 mA | 4.73Ohm Max | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 2220 (5750 Metric) |
