TLVR1005T-R17K
Bourns Inc.
- Inductance
- 170 nH
- Current
- 75 A
- DCR
- 0.125mOhm
- Size
- 0.382" L x 0.185" W (9.70mm x 4.70mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: TLVR1005T
Browse series tables and compare the available specifications.
TLVR1005T
TLVR1005T-90NK
Bourns Inc.
- Inductance
- 90 nH
- Current
- 75 A
- DCR
- 0.125mOhm
- Size
- 0.382" L x 0.185" W (9.70mm x 4.70mm)
TLVR1005T-R15K
Bourns Inc.
- Inductance
- 150 nH
- Current
- 75 A
- DCR
- 0.125mOhm
- Size
- 0.382" L x 0.185" W (9.70mm x 4.70mm)
TLVR1005T-70NK
Bourns Inc.
- Inductance
- 70 nH
- Current
- 75 A
- DCR
- 0.125mOhm
- Size
- 0.382" L x 0.185" W (9.70mm x 4.70mm)
TLVR1005T-80NK
Bourns Inc.
- Inductance
- 80 nH
- Current
- 75 A
- DCR
- 0.125mOhm
- Size
- 0.382" L x 0.185" W (9.70mm x 4.70mm)

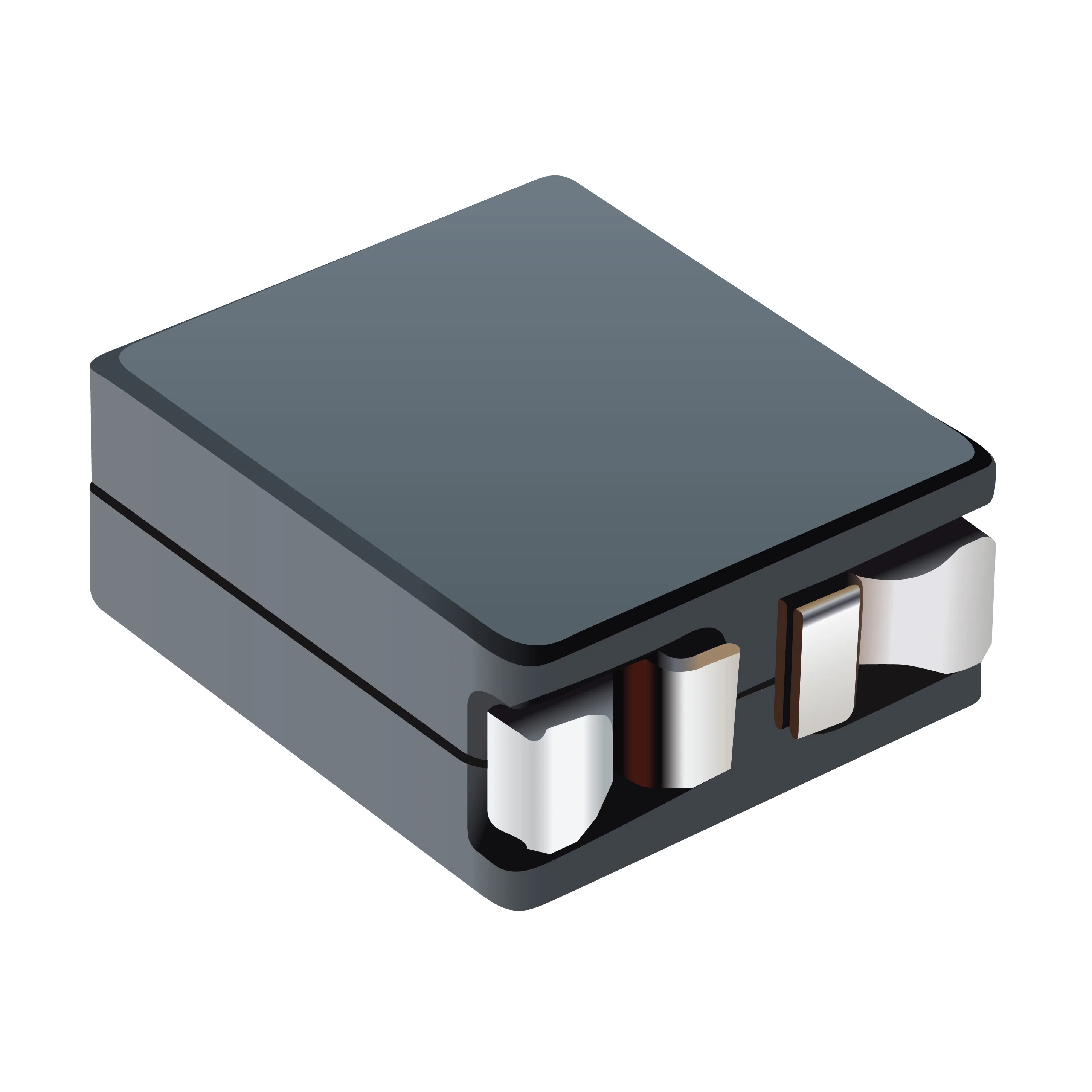

TLVR1005T-R12K
Bourns Inc.
- Inductance
- 120 nH
- Current
- 75 A
- DCR
- 0.125mOhm
- Size
- 0.382" L x 0.185" W (9.70mm x 4.70mm)
TLVR1005T-R10K
Bourns Inc.
- Inductance
- 100 nH
- Current
- 75 A
- DCR
- 0.125mOhm
- Size
- 0.382" L x 0.185" W (9.70mm x 4.70mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
TLVR1005T-R17K Bourns Inc. | 170 nH | 75 A | 0.125mOhm | 0.382" L x 0.185" W (9.70mm x 4.70mm) | Nonstandard, 4 Lead | |
TLVR1005T-90NK Bourns Inc. | 90 nH | 75 A | 0.125mOhm | 0.382" L x 0.185" W (9.70mm x 4.70mm) | Nonstandard, 4 Lead | |
TLVR1005T-R15K Bourns Inc. | 150 nH | 75 A | 0.125mOhm | 0.382" L x 0.185" W (9.70mm x 4.70mm) | Nonstandard, 4 Lead | |
TLVR1005T-70NK Bourns Inc. | 70 nH | 75 A | 0.125mOhm | 0.382" L x 0.185" W (9.70mm x 4.70mm) | Nonstandard, 4 Lead | |
TLVR1005T-80NK Bourns Inc. | 80 nH | 75 A | 0.125mOhm | 0.382" L x 0.185" W (9.70mm x 4.70mm) | Nonstandard, 4 Lead | |
TLVR1005T-R12K Bourns Inc. | 120 nH | 75 A | 0.125mOhm | 0.382" L x 0.185" W (9.70mm x 4.70mm) | Nonstandard, 4 Lead | |
TLVR1005T-R10K Bourns Inc. | 100 nH | 75 A | 0.125mOhm | 0.382" L x 0.185" W (9.70mm x 4.70mm) | Nonstandard, 4 Lead |
