Series: UNI-PAC™ 2UC

Browse series tables and compare the available specifications.

UNI-PAC™ 2UC

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

UP2UC-1R5-R

Eaton - Electronics Division

Inductance: 1.5 µH
Current: 6.4 A
DCR: 10mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-6R8-R

Eaton - Electronics Division

Inductance: 6.8 µH
Current: 4.4 A
DCR: 27mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-681-R

Eaton - Electronics Division

Inductance: 680 µH
Current: 400 mA
DCR: 2.02Ohm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

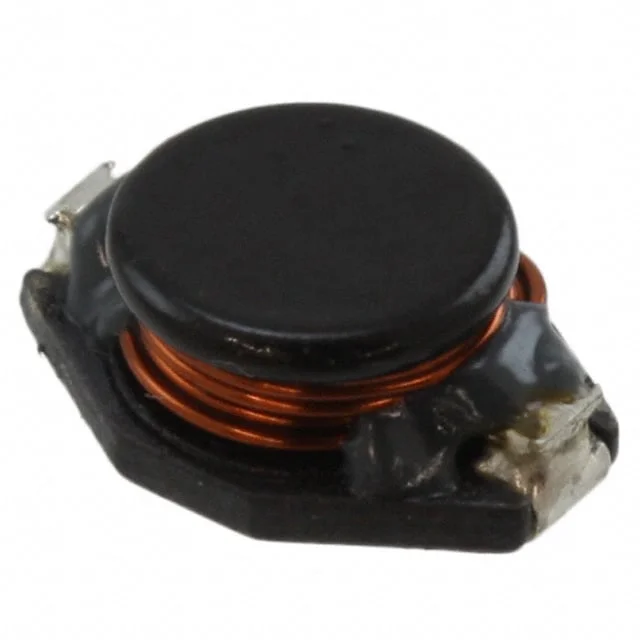

UP2UC-151-R

Eaton - Electronics Division

Inductance: 150 µH
Current: 1 A
DCR: 400mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-101-R

Eaton - Electronics Division

Inductance: 100 µH
Current: 1.3 A
DCR: 280mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-150-R

Eaton - Electronics Division

Inductance: 15 µH
Current: 3.1 A
DCR: 46mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-4R7-R

Eaton - Electronics Division

Inductance: 4.7 µH
Current: 4.8 A
DCR: 18mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-471-R

Eaton - Electronics Division

Inductance: 470 µH
Current: 500 mA
DCR: 1.27Ohm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-330-R

Eaton - Electronics Division

Inductance: 33 µH
Current: 2.1 A
DCR: 100mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

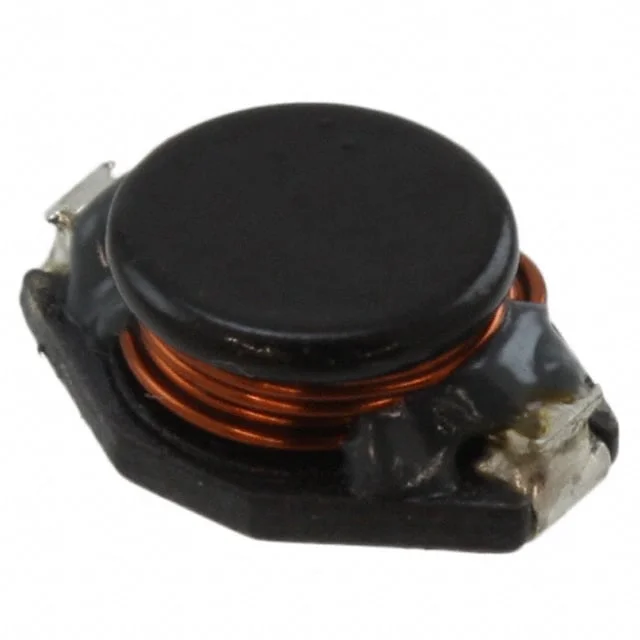

UP2UC-331-R

Eaton - Electronics Division

Inductance: 330 µH
Current: 600 mA
DCR: 1.02Ohm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-1R0-R

Eaton - Electronics Division

Inductance: 1 µH
Current: 6.8 A
DCR: 9mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-3R3-R

Eaton - Electronics Division

Inductance: 3.3 µH
Current: 5.4 A
DCR: 15mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-680-R

Eaton - Electronics Division

Inductance: 68 µH
Current: 1.5 A
DCR: 200mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-100-R

Eaton - Electronics Division

Inductance: 10 µH
Current: 3.9 A
DCR: 38mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-470-R

Eaton - Electronics Division

Inductance: 47 µH
Current: 1.8 A
DCR: 140mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-102-R

Eaton - Electronics Division

Inductance: 1 mH
Current: 300 mA
DCR: 3Ohm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-220-R

Eaton - Electronics Division

Inductance: 22 µH
Current: 2.7 A
DCR: 85mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-2R2-R

Eaton - Electronics Division

Inductance: 2.2 µH
Current: 6.1 A
DCR: 12mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

UP2UC-221-R

Eaton - Electronics Division

Inductance: 220 µH
Current: 800 mA
DCR: 610mOhm Max
Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)

Product	Inductance	Current	DCR	Size	Package	Actions
UP2UC-1R5-R Eaton - Electronics Division	1.5 µH	6.4 A	10mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-6R8-R Eaton - Electronics Division	6.8 µH	4.4 A	27mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-681-R Eaton - Electronics Division	680 µH	400 mA	2.02Ohm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-151-R Eaton - Electronics Division	150 µH	1 A	400mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-101-R Eaton - Electronics Division	100 µH	1.3 A	280mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-150-R Eaton - Electronics Division	15 µH	3.1 A	46mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-4R7-R Eaton - Electronics Division	4.7 µH	4.8 A	18mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-471-R Eaton - Electronics Division	470 µH	500 mA	1.27Ohm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-330-R Eaton - Electronics Division	33 µH	2.1 A	100mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-331-R Eaton - Electronics Division	330 µH	600 mA	1.02Ohm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-1R0-R Eaton - Electronics Division	1 µH	6.8 A	9mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-3R3-R Eaton - Electronics Division	3.3 µH	5.4 A	15mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-680-R Eaton - Electronics Division	68 µH	1.5 A	200mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-100-R Eaton - Electronics Division	10 µH	3.9 A	38mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-470-R Eaton - Electronics Division	47 µH	1.8 A	140mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-102-R Eaton - Electronics Division	1 mH	300 mA	3Ohm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-220-R Eaton - Electronics Division	22 µH	2.7 A	85mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-2R2-R Eaton - Electronics Division	2.2 µH	6.1 A	12mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
UP2UC-221-R Eaton - Electronics Division	220 µH	800 mA	610mOhm Max	0.500" L x 0.394" W (12.70mm x 10.00mm)	Nonstandard	View PDF
