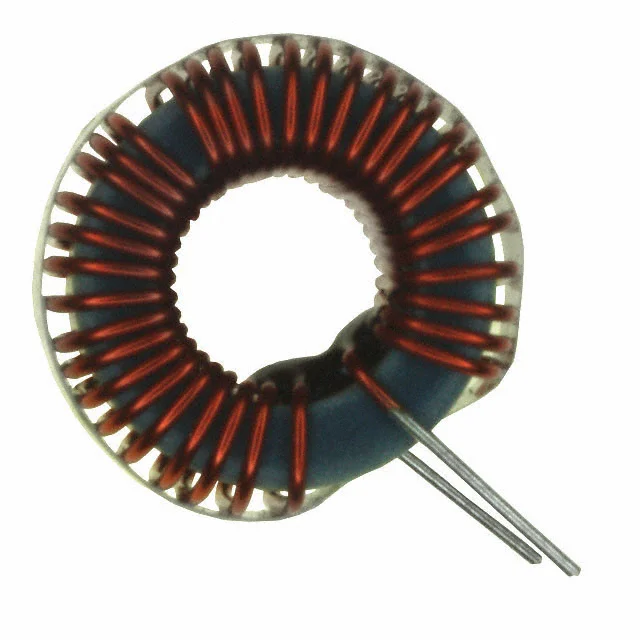

FIXED IND 100UH 4.4A 53.4 MOHM
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating | 4.4 A |
| DC Resistance (DCR) | 53.4mOhm Max |
| saturationCurrent | 4.3A |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 0.945" Dia x 0.654" W (24.00mm x 16.60mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 100UH 4.4A 53.4 MOHM |
| Series | CTX |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
