Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Product Attributes

KEMET

1.5 µH• 12.4 A2-SMD, J-Lead

KEMET

1 µH• 10.6 A2-SMD, J-Lead

KEMET

2.2 µH• 7.3 A2-SMD, J-Lead

KEMET

3.3 µH• 5.7 A2-SMD, J-Lead

KEMET

4.7 µH• 5 A2-SMD, J-Lead

KEMET

2.2 µH• 10.5 A2-SMD, J-Lead

KEMET

4.7 µH• 8 A2-SMD, J-Lead

KEMET

3.3 µH• 8.8 A2-SMD, J-Lead

KEMET

1.5 µH• 8.6 A2-SMD, J-Lead

KEMET

750 nH• -2-SMD, J-Lead

Product	Inductance	Current	DCR	Size	Package	Actions

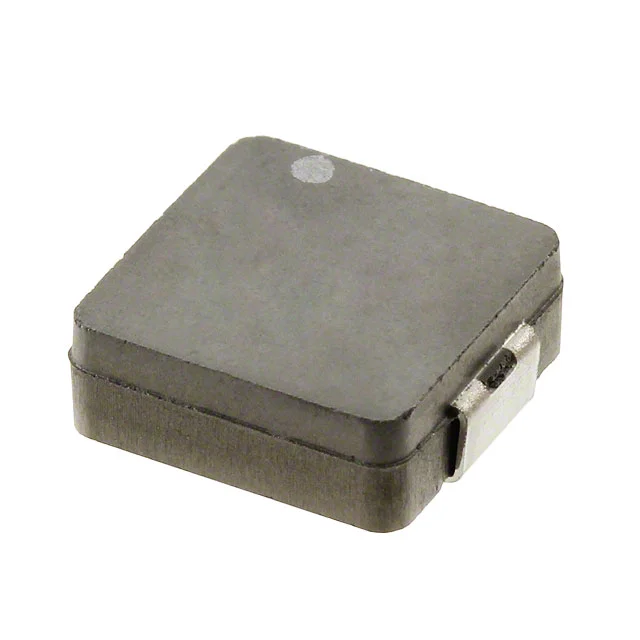

MPLC1040L1R5 KEMET	1.5 µH	12.4 A	7mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPLC0730L1R0 KEMET	1 µH	10.6 A	9mOhm Max	0.303" L x 0.264" W (7.70mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPLC0730L2R2 KEMET	2.2 µH	7.3 A	19mOhm Max	0.303" L x 0.264" W (7.70mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPLC0730L3R3 KEMET	3.3 µH	5.7 A	30mOhm Max	0.303" L x 0.264" W (7.70mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPLC0730L4R7 KEMET	4.7 µH	5 A	41mOhm Max	0.303" L x 0.264" W (7.70mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPLC1040L2R2 KEMET	2.2 µH	10.5 A	10mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPLC1040L4R7 KEMET	4.7 µH	8 A	19mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPLC1040L3R3 KEMET	3.3 µH	8.8 A	14mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPLC0730L1R5 KEMET	1.5 µH	8.6 A	15mOhm Max	0.303" L x 0.264" W (7.70mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPLC0730LR75 KEMET	750 nH	-	-	0.303" L x 0.264" W (7.70mm x 6.70mm)	2-SMD, J-Lead	View PDF
