Description

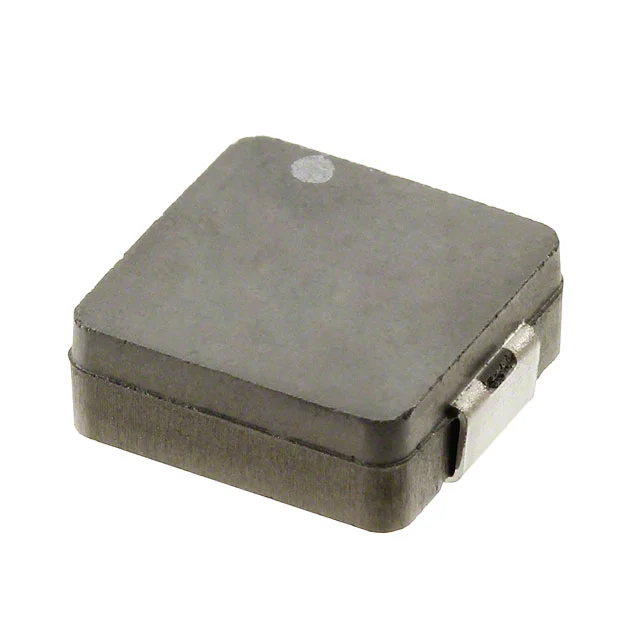

FIXED IND 4.7UH 8A 19 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPLC1040L4R7.
MPLC1040L4R7 has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPLC1040L4R7 is rated for 8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPLC1040L4R7 lists a DC resistance of 19mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPLC1040L4R7 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPLC1040L4R7 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 8 A |
| DC Resistance (DCR) | 19mOhm Max |
| Saturation Current | 8A |
| Operating Temperature | -20°C ~ 120°C |
| Dimensions | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | KEMET |
| Description | FIXED IND 4.7UH 8A 19 MOHM SMD |
| Series | MPLC |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.157" (4.00mm) |
