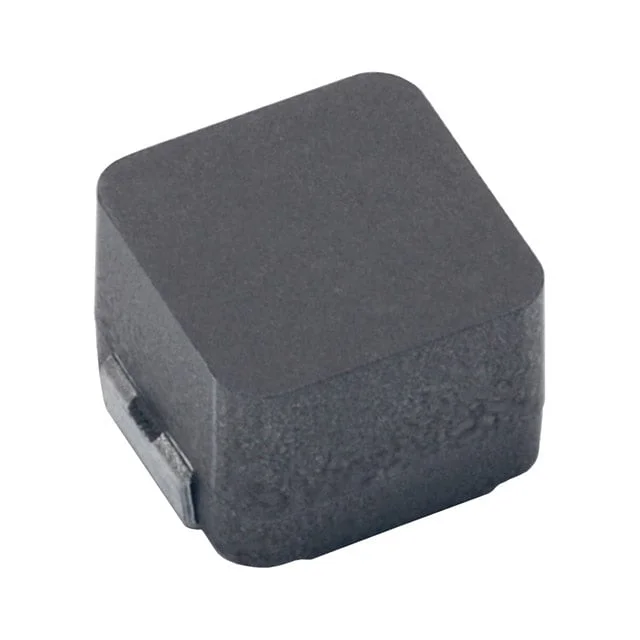

FIXED IND 680NH 18.8A 4.1 MOHM
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 18.8 A |
| DC Resistance (DCR) | 4.1mOhm Max |
| saturationCurrent | 17A |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.276" L x 0.256" W (7.00mm x 6.50mm) |
| Case / Size | Nonstandard |
| Supplier | KEMET |
| Description | FIXED IND 680NH 18.8A 4.1 MOHM |
| Series | METCOM MPX |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Metal Composite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
