SHBC10-0R8A0068V
KEMET
- Inductance
- 68 µH
- Current
- 3 A
- DCR
- 42.3mOhm Max
- Size
- 0.846" Dia (21.50mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: SHBC
Browse series tables and compare the available specifications.
SHBC
SHBC12-1R0A0080V
KEMET
- Inductance
- 80 µH
- Current
- 5 A
- DCR
- 35.6mOhm Max
- Size
- 1.039" Dia (26.40mm)
SHBC13-1R2A0045V
KEMET
- Inductance
- 45 µH
- Current
- 6 A
- DCR
- 18.3mOhm Max
- Size
- 1.181" Dia (30.00mm)

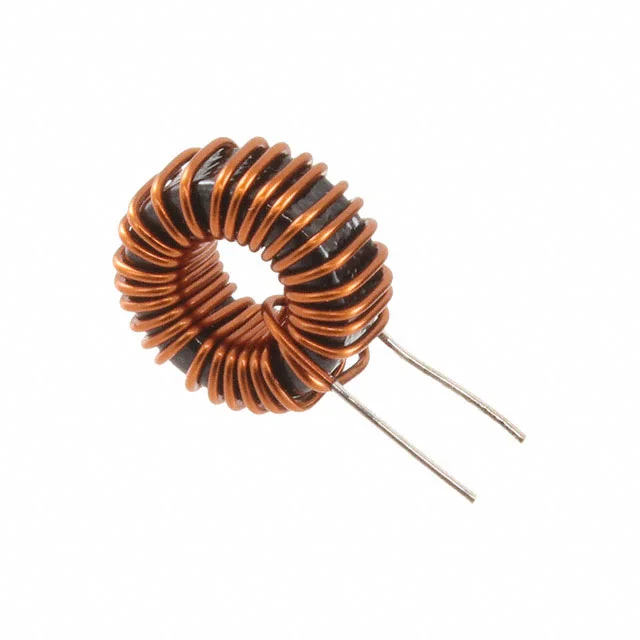

SHBC24W-2R1B0065V
KEMET
- Inductance
- 65 µH
- Current
- 30 A
- DCR
- 6.2mOhm Max
- Size
- 2.268" Dia (57.60mm)
SHBC24W-2R4A0174V
KEMET
- Inductance
- 174 µH
- Current
- 20 A
- DCR
- 11.8mOhm Max
- Size
- 2.268" Dia (57.60mm)
SHBC12-1R0A0028V
KEMET
- Inductance
- 28 µH
- Current
- 5 A
- DCR
- 21.1mOhm Max
- Size
- 1.024" Dia (26.00mm)
SHBC12-1R0A0051V
KEMET
- Inductance
- 51 µH
- Current
- 5 A
- DCR
- 28mOhm Max
- Size
- 1.024" Dia (26.00mm)
SHBC13-1R2A0127V
KEMET
- Inductance
- 127 µH
- Current
- 6 A
- DCR
- 31.7mOhm Max
- Size
- 1.181" Dia (30.00mm)
SHBC13-1R2A0081V
KEMET
- Inductance
- 81 µH
- Current
- 6 A
- DCR
- 24.7mOhm Max
- Size
- 1.181" Dia (30.00mm)
SHBC14-1R2A0120V
KEMET
- Inductance
- 120 µH
- Current
- 8 A
- DCR
- 29.9mOhm Max
- Size
- 1.339" Dia (34.00mm)
SHBC20-1R7A0152V
KEMET
- Inductance
- 152 µH
- Current
- 12 A
- DCR
- 20.4mOhm Max
- Size
- 1.622" Dia (41.20mm)
SHBC24W-2R1A0311V
KEMET
- Inductance
- 311 µH
- Current
- 15 A
- DCR
- 20.1mOhm Max
- Size
- 2.268" Dia (57.60mm)
SHBC14-1R2A0187V
KEMET
- Inductance
- 187 µH
- Current
- 8 A
- DCR
- 37.6mOhm Max
- Size
- 1.339" Dia (34.00mm)
SHBC24N-2R1B0039V
KEMET
- Inductance
- 39 µH
- Current
- 30 A
- DCR
- 6.8mOhm Max
- Size
- 1.972" Dia (50.10mm)
SHBC24N-2R3A0104V
KEMET
- Inductance
- 104 µH
- Current
- 20 A
- DCR
- 10.4mOhm Max
- Size
- 1.949" Dia (49.50mm)
SHBC24N-2R0A0219V
KEMET
- Inductance
- 219 µH
- Current
- 15 A
- DCR
- 19.5mOhm Max
- Size
- 1.988" Dia (50.50mm)
SHBC8S-0R6A0024V
KEMET
- Inductance
- 24 µH
- Current
- 2 A
- DCR
- 41.1mOhm Max
- Size
- 0.630" Dia (16.00mm)
SHBC20-1R7A0097V
KEMET
- Inductance
- 97 µH
- Current
- 12 A
- DCR
- 16mOhm Max
- Size
- 1.622" Dia (41.20mm)
SHBC8S-0R6A0067V
KEMET
- Inductance
- 67 µH
- Current
- 2 A
- DCR
- 67.8mOhm Max
- Size
- 0.669" Dia (17.00mm)
SHBC20-1R7A0054V
KEMET
- Inductance
- 54 µH
- Current
- 12 A
- DCR
- 11.5mOhm Max
- Size
- 1.622" Dia (41.20mm)
SHBC10-0R8A0038V
KEMET
- Inductance
- 38 µH
- Current
- 3 A
- DCR
- 31.2mOhm Max
- Size
- 0.846" Dia (21.50mm)
SHBC8S-0R6A0043V
KEMET
- Inductance
- 43 µH
- Current
- 2 A
- DCR
- 54.1mOhm Max
- Size
- 0.669" Dia (17.00mm)
SHBC10-0R8A0107V
KEMET
- Inductance
- 107 µH
- Current
- 3 A
- DCR
- 53mOhm Max
- Size
- 0.866" Dia (22.00mm)
SHBC14-1R2A0067V
KEMET
- Inductance
- 67 µH
- Current
- 8 A
- DCR
- 22.2mOhm Max
- Size
- 1.319" Dia (33.50mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
SHBC10-0R8A0068V KEMET | 68 µH | 3 A | 42.3mOhm Max | 0.846" Dia (21.50mm) | Radial, Vertical (Open) | |
SHBC12-1R0A0080V KEMET | 80 µH | 5 A | 35.6mOhm Max | 1.039" Dia (26.40mm) | Radial, Vertical (Open) | |
SHBC13-1R2A0045V KEMET | 45 µH | 6 A | 18.3mOhm Max | 1.181" Dia (30.00mm) | Radial, Vertical (Open) | |
SHBC24W-2R1B0065V KEMET | 65 µH | 30 A | 6.2mOhm Max | 2.268" Dia (57.60mm) | Radial, Vertical (Open) | |
SHBC24W-2R4A0174V KEMET | 174 µH | 20 A | 11.8mOhm Max | 2.268" Dia (57.60mm) | Radial, Vertical (Open) | |
SHBC12-1R0A0028V KEMET | 28 µH | 5 A | 21.1mOhm Max | 1.024" Dia (26.00mm) | Radial, Vertical (Open) | |
SHBC12-1R0A0051V KEMET | 51 µH | 5 A | 28mOhm Max | 1.024" Dia (26.00mm) | Radial, Vertical (Open) | |
SHBC13-1R2A0127V KEMET | 127 µH | 6 A | 31.7mOhm Max | 1.181" Dia (30.00mm) | Radial, Vertical (Open) | |
SHBC13-1R2A0081V KEMET | 81 µH | 6 A | 24.7mOhm Max | 1.181" Dia (30.00mm) | Radial, Vertical (Open) | |
SHBC14-1R2A0120V KEMET | 120 µH | 8 A | 29.9mOhm Max | 1.339" Dia (34.00mm) | Radial, Vertical (Open) | |
SHBC20-1R7A0152V KEMET | 152 µH | 12 A | 20.4mOhm Max | 1.622" Dia (41.20mm) | Radial, Vertical (Open) | |
SHBC24W-2R1A0311V KEMET | 311 µH | 15 A | 20.1mOhm Max | 2.268" Dia (57.60mm) | Radial, Vertical (Open) | |
SHBC14-1R2A0187V KEMET | 187 µH | 8 A | 37.6mOhm Max | 1.339" Dia (34.00mm) | Radial, Vertical (Open) | |
SHBC24N-2R1B0039V KEMET | 39 µH | 30 A | 6.8mOhm Max | 1.972" Dia (50.10mm) | Radial, Vertical (Open) | |
SHBC24N-2R3A0104V KEMET | 104 µH | 20 A | 10.4mOhm Max | 1.949" Dia (49.50mm) | Radial, Vertical (Open) | |
SHBC24N-2R0A0219V KEMET | 219 µH | 15 A | 19.5mOhm Max | 1.988" Dia (50.50mm) | Radial, Vertical (Open) | |
SHBC8S-0R6A0024V KEMET | 24 µH | 2 A | 41.1mOhm Max | 0.630" Dia (16.00mm) | Radial, Vertical (Open) | |
SHBC20-1R7A0097V KEMET | 97 µH | 12 A | 16mOhm Max | 1.622" Dia (41.20mm) | Radial, Vertical (Open) | |
SHBC8S-0R6A0067V KEMET | 67 µH | 2 A | 67.8mOhm Max | 0.669" Dia (17.00mm) | Radial, Vertical (Open) | |
SHBC20-1R7A0054V KEMET | 54 µH | 12 A | 11.5mOhm Max | 1.622" Dia (41.20mm) | Radial, Vertical (Open) | |
SHBC10-0R8A0038V KEMET | 38 µH | 3 A | 31.2mOhm Max | 0.846" Dia (21.50mm) | Radial, Vertical (Open) | |
SHBC8S-0R6A0043V KEMET | 43 µH | 2 A | 54.1mOhm Max | 0.669" Dia (17.00mm) | Radial, Vertical (Open) | |
SHBC10-0R8A0107V KEMET | 107 µH | 3 A | 53mOhm Max | 0.866" Dia (22.00mm) | Radial, Vertical (Open) | |
SHBC14-1R2A0067V KEMET | 67 µH | 8 A | 22.2mOhm Max | 1.319" Dia (33.50mm) | Radial, Vertical (Open) |
