Description

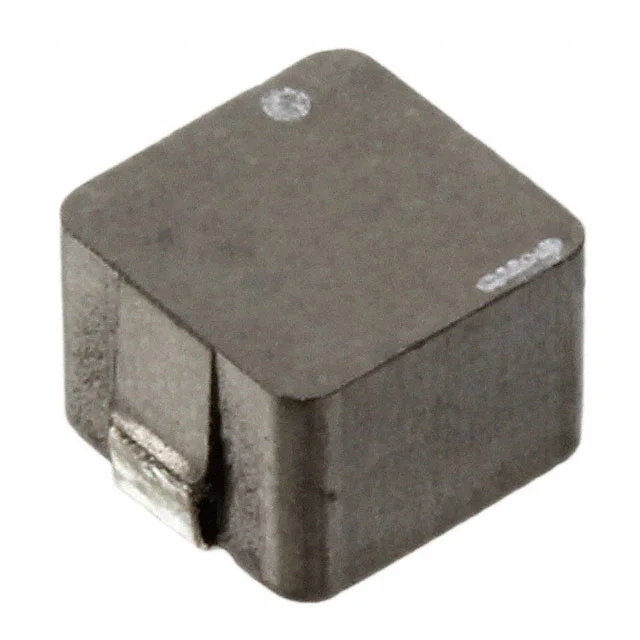

FIXED IND 680NH 18A 2.2 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPC0750LR68C.
MPC0750LR68C has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPC0750LR68C is rated for 18 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPC0750LR68C lists a DC resistance of 2.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPC0750LR68C uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPC0750LR68C to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 18 A |
| DC Resistance (DCR) | 2.2mOhm Max |
| Saturation Current | 16A |
| Operating Temperature | -20°C ~ 120°C |
| Dimensions | 0.315" L x 0.264" W (8.00mm x 6.70mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | KEMET |
| Description | FIXED IND 680NH 18A 2.2 MOHM SMD |
| Series | MPC |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
