Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Series: MPC

Browse series tables and compare the available specifications.

MPC

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

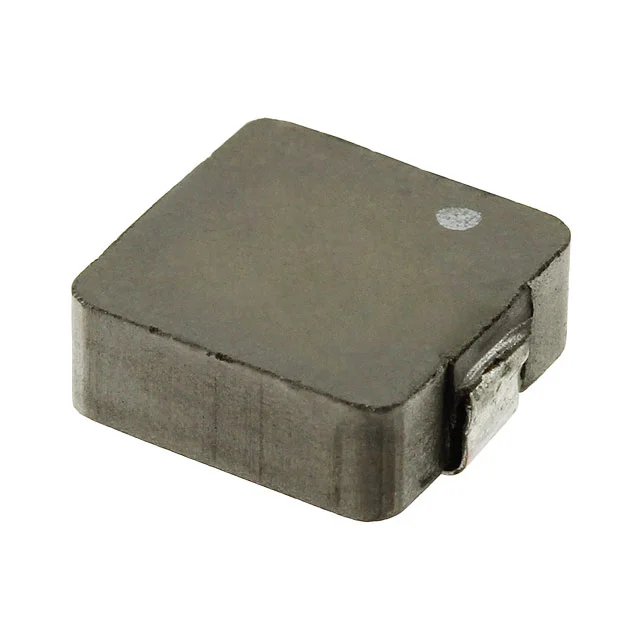

MPC1040LR88C

KEMET

Inductance: 880 nH
Current: 17 A
DCR: 2.3mOhm Max
Size: 0.453" L x 0.394" W (11.50mm x 10.00mm)

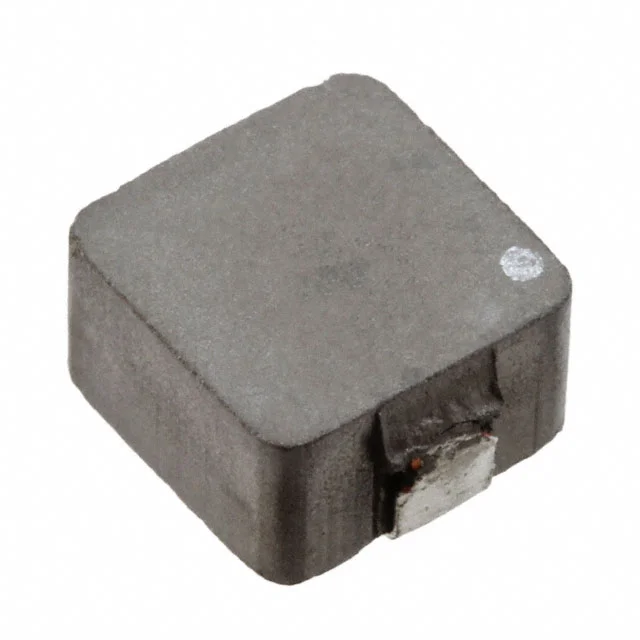

MPC0740LR42C

KEMET

Inductance: 420 nH
Current: 22 A
DCR: 1.55mOhm Max
Size: 0.315" L x 0.264" W (8.00mm x 6.70mm)

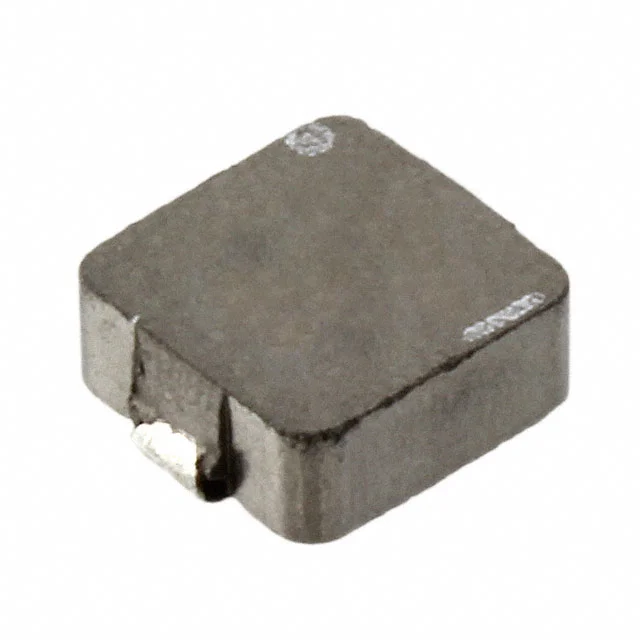

MPC0730LR20C

KEMET

Inductance: 200 nH
Current: 23 A
DCR: 1.2mOhm Max
Size: 0.315" L x 0.264" W (8.00mm x 6.70mm)

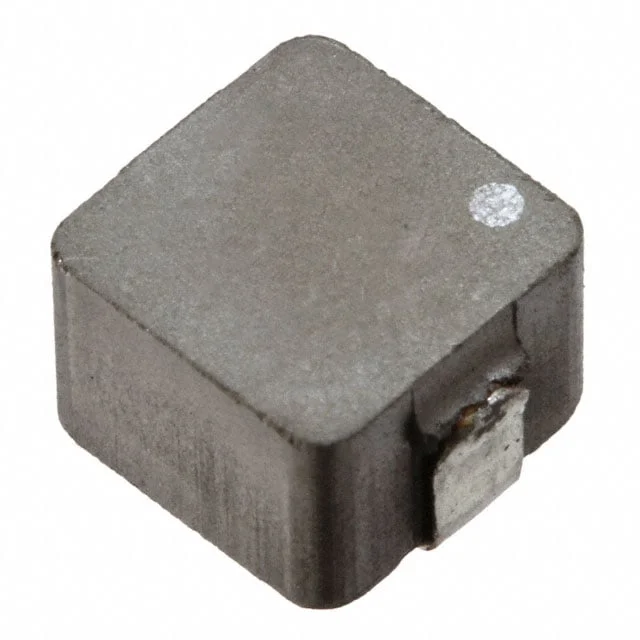

MPC0750LR60C

KEMET

Inductance: 600 nH
Current: 17 A
DCR: 2.3mOhm Max
Size: 0.315" L x 0.264" W (8.00mm x 6.70mm)

MPC1250LR50C

KEMET

Inductance: 500 nH
Current: 35 A
DCR: 0.8mOhm
Size: 0.571" L x 0.492" W (14.50mm x 12.50mm)

MPC1040LR45C

KEMET

Inductance: 450 nH
Current: 25 A
DCR: 1.1mOhm Max
Size: 0.453" L x 0.394" W (11.50mm x 10.00mm)

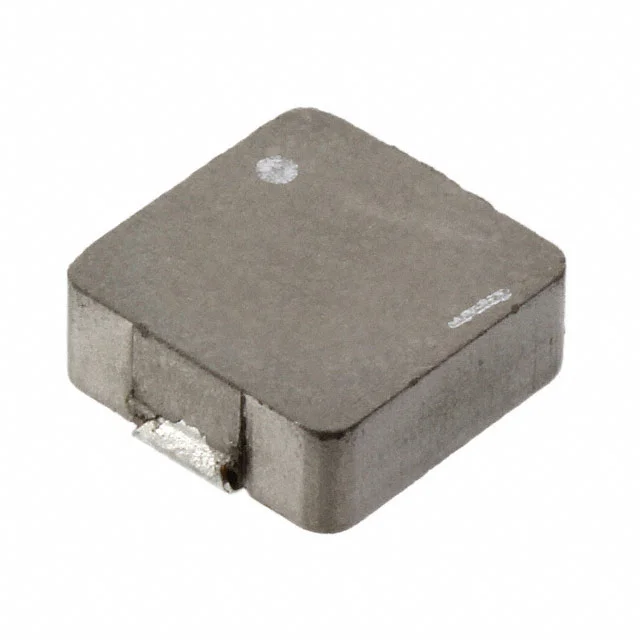

MPC1040LR56C

KEMET

Inductance: 560 nH
Current: 23 A
DCR: 1.3mOhm Max
Size: 0.453" L x 0.394" W (11.50mm x 10.00mm)

MPC1055L1R0C

KEMET

Inductance: 1 µH
Current: 18.5 A
DCR: 2.3mOhm Max
Size: 0.461" L x 0.394" W (11.70mm x 10.00mm)

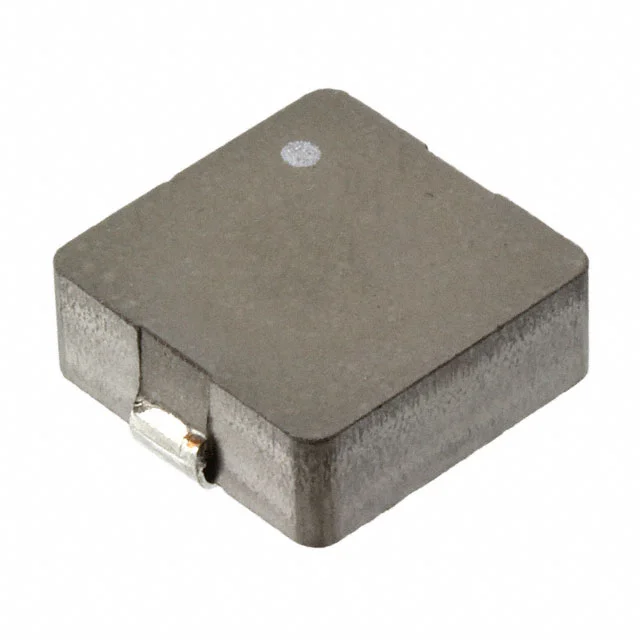

MPC1260LR45

KEMET

Inductance: 450 nH
Current: -
DCR: -
Size: -

MPC1250LR36C

KEMET

Inductance: 360 nH
Current: 38 A
DCR: 0.65mOhm
Size: 0.571" L x 0.492" W (14.50mm x 12.50mm)

MPC1040LR36C

KEMET

Inductance: 360 nH
Current: 25.5 A
DCR: 1.05mOhm Max
Size: 0.453" L x 0.394" W (11.50mm x 10.00mm)

MPC1055LR36C

KEMET

Inductance: 360 nH
Current: 32 A
DCR: 0.75mOhm
Size: 0.461" L x 0.394" W (11.70mm x 10.00mm)

MPC0750LR68C

KEMET

Inductance: 680 nH
Current: 18 A
DCR: 2.2mOhm Max
Size: 0.315" L x 0.264" W (8.00mm x 6.70mm)

Product	Inductance	Current	DCR	Size	Package	Actions
MPC1040LR88C KEMET	880 nH	17 A	2.3mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPC0740LR42C KEMET	420 nH	22 A	1.55mOhm Max	0.315" L x 0.264" W (8.00mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPC0730LR20C KEMET	200 nH	23 A	1.2mOhm Max	0.315" L x 0.264" W (8.00mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPC0750LR60C KEMET	600 nH	17 A	2.3mOhm Max	0.315" L x 0.264" W (8.00mm x 6.70mm)	2-SMD, J-Lead	View PDF
MPC1250LR50C KEMET	500 nH	35 A	0.8mOhm	0.571" L x 0.492" W (14.50mm x 12.50mm)	2-SMD, J-Lead	View PDF
MPC1040LR45C KEMET	450 nH	25 A	1.1mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPC1040LR56C KEMET	560 nH	23 A	1.3mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPC1055L1R0C KEMET	1 µH	18.5 A	2.3mOhm Max	0.461" L x 0.394" W (11.70mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPC1260LR45 KEMET	450 nH	-	-	-	2-SMD, J-Lead	View PDF
MPC1250LR36C KEMET	360 nH	38 A	0.65mOhm	0.571" L x 0.492" W (14.50mm x 12.50mm)	2-SMD, J-Lead	View PDF
MPC1040LR36C KEMET	360 nH	25.5 A	1.05mOhm Max	0.453" L x 0.394" W (11.50mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPC1055LR36C KEMET	360 nH	32 A	0.75mOhm	0.461" L x 0.394" W (11.70mm x 10.00mm)	2-SMD, J-Lead	View PDF
MPC0750LR68C KEMET	680 nH	18 A	2.2mOhm Max	0.315" L x 0.264" W (8.00mm x 6.70mm)	2-SMD, J-Lead	View PDF
