Description

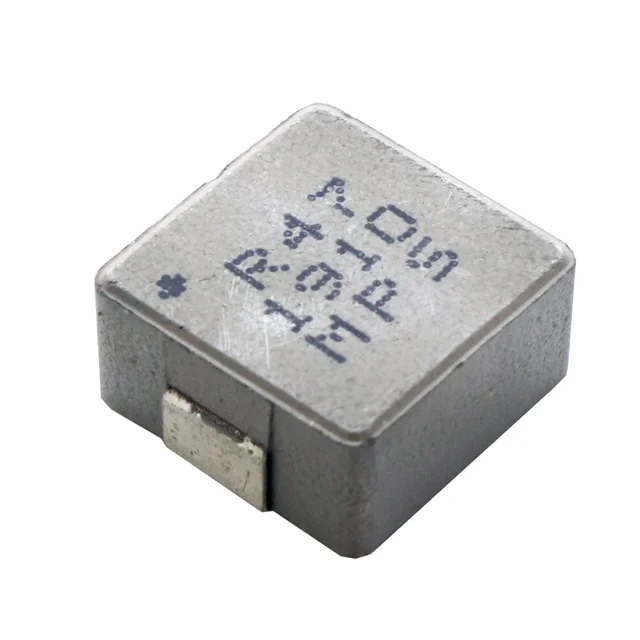

FIXED IND 680NH 29A 1.25 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MPL-AY1265-R68.
MPL-AY1265-R68 has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MPL-AY1265-R68 is rated for 29 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MPL-AY1265-R68 lists a DC resistance of 1.25mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MPL-AY1265-R68 uses a package or case of 2-SMD, J-Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MPL-AY1265-R68 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 nH |
| Current Rating | 29 A |
| DC Resistance (DCR) | 1.25mOhm |
| Saturation Current | 51A |
| Operating Temperature | -40°C ~ 155°C |
| Dimensions | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Case / Size | 2-SMD, J-Lead |
| Package / Case | 2-SMD, J-Lead |
| Supplier | Monolithic Power Systems Inc. |
| Description | FIXED IND 680NH 29A 1.25 MOHM |
| Series | MPL-AY |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.256" (6.50mm) |
